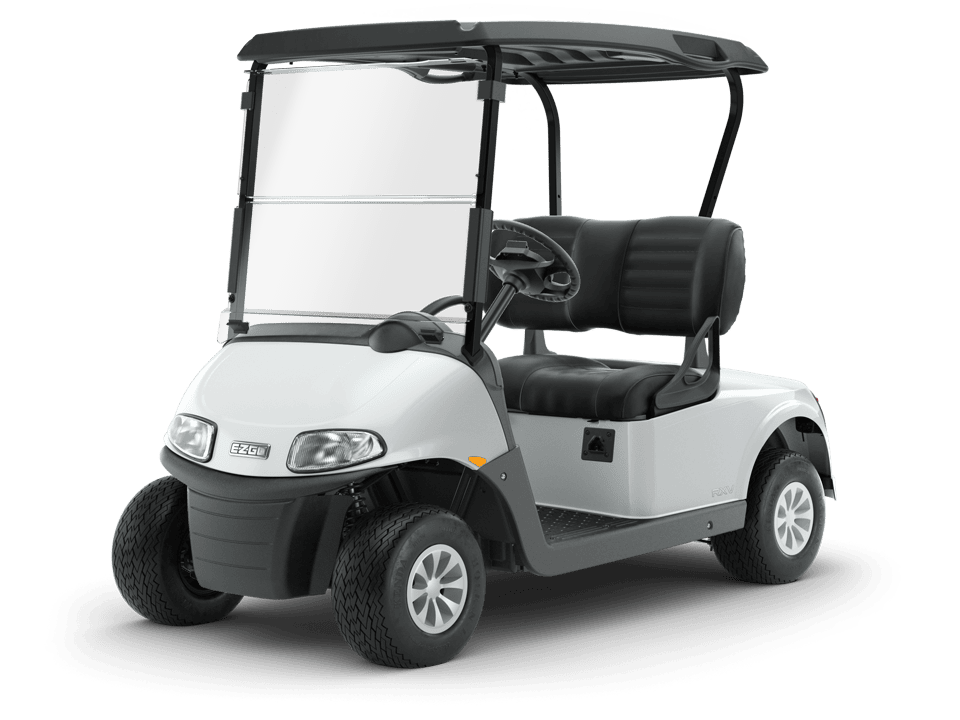

E-Z-GO Freedom RXV Gas
From rides around the neighborhood to quick errand runs, the E-Z-GO® Freedom® RXV® is designed to make life beyond fun. Choose between the electric model’s patented AC drive, the 13.5-hp gas engine with closed-loop electronic fuel injection model, or the maintenance-free Freedom RXV ELiTE™. No matter where the day takes you, let the Freedom RXV get you there.
- 11.5-hp gas engine with closed-loop electronic fuel injection
- Limited slip differential
- Independent front suspension
- Optional Rear-Facing Seat
| Frame | Welded Steel with Powder-Coat Protection |
|---|---|
| Body & Finish | Injection Molded TPO |
| Available Colors | Black, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Grey, Platinum, Bright White, Slate |
| Overall Length | 94.5 in (240 cm) |
| Overall Width | 47.0 in (119 cm) |
| Overall Height | 47.5 in (121 cm) (top of steering wheel) 70.0 in (178 cm) (top of sun canopy) |
| Wheel Base | 65.7 in (167 cm) |
| Wheel Track | (Front) 35.5 in (90 cm) (Rear) 38 in (97 cm) |
| Ground Clearance | 4.0 in (10 cm) |
| Power Source | 4-Cycle, 9.15 cu in (150 cc) |
| Valve Train | Single cylinder OHV with hemispheric combustion chamber |
| Horsepower (KW) | 11.5 hp (8.6 kW) J1995 Standard |
| Electrical System | Brushless DC Internal Starter Generator |
| Battery (Qty/Type) | One 12-volt, maintenance free |
| Air Cleaner | Industrial-Rated Dry Filter |
| Lubrication | Pressurized oil system |
| Oil Filter | Spin-on |
| Cooling System | Air-cooled |
| Fuel Capacity | 5.96 gallons (22.6 L) Tank |
| Drive Train | Automatic, continuously variable transmission (CVT) |
| Transaxle | Differential with helical gears |
| Gear Selection | Forward-Reverse |
| Rear Axle Ratio | 11:47:1 (forward) 14:35:1 (reverse) |
| Fuel System | Closed-Loop Electronic Fuel Injection |
| Seating Capacity | 2 or 4-Person |
| Weight w/o Batteries | 676 lb (307 kg) |
| Curb Weight | 692 lb (314 kg) |
| Vehicle Load Capacity | 500-800 lb (227-360 kg) |
| Towing Capacity | 3 E-Z-GO golf cars with approved permanent tow bar |
| Outside Clearance Circle | 19.0 ft (5.8 m) |
| Speed | 19.0 mph ± 0.5 mph (31 kph ± 0.8 kph) |
| Steering | Double-ended rack and pinion |
| Suspension | (Front) Independent A-Arm Coil Over Shock (Rear) Mono-Leaf springs with hydraulic shock absorbers |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Parking Brake | Self-Compensating, Single-Point Engagement |
| Tires | Hole-in-One 18 x 8.50-8 (4-ply rated) |
