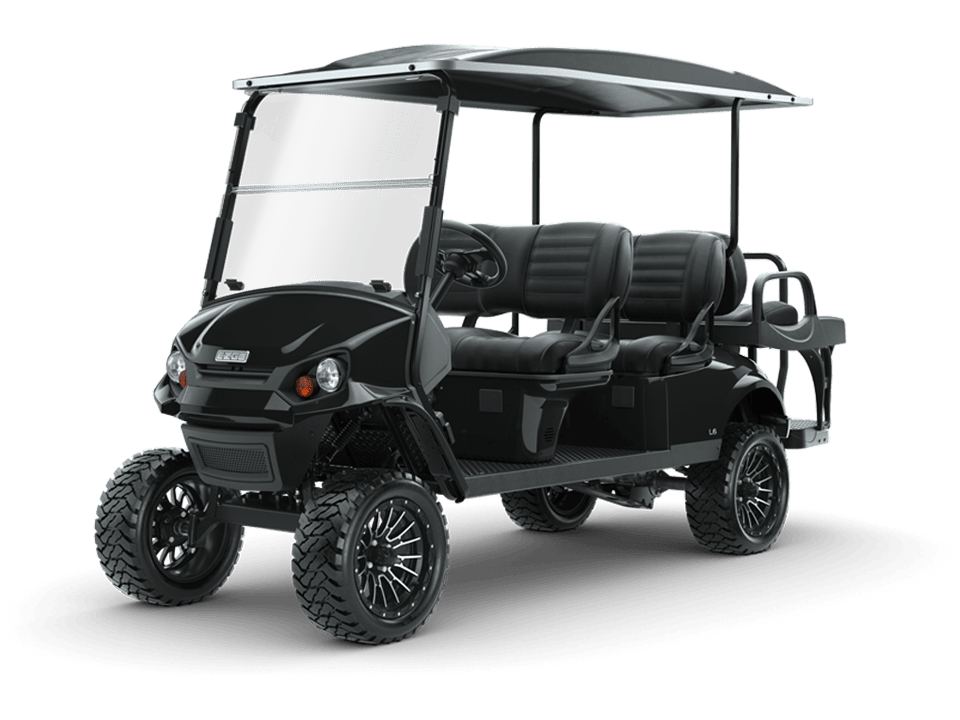

June 14, 2019E-Z-GO Express L6 Gas
It’s time to get away, time to explore and see what adventures you can find along the next path. With eco-friendly powertrain options, rugged tires, and higher ground clearance, the Express™ L6 gives you a smooth and stylish ride. Whether it’s camping with the family or exploring a new trail with friends, let the Express L6 take you there.
- 13.5 – hp gas engine with closed-loop electronic fuel injection
- Convertible rear seat
- 4″ lift kit
Frame | Welded Steel with Powder-Coat Protection |
---|---|
Body & Finish | Injection-molded TPO |

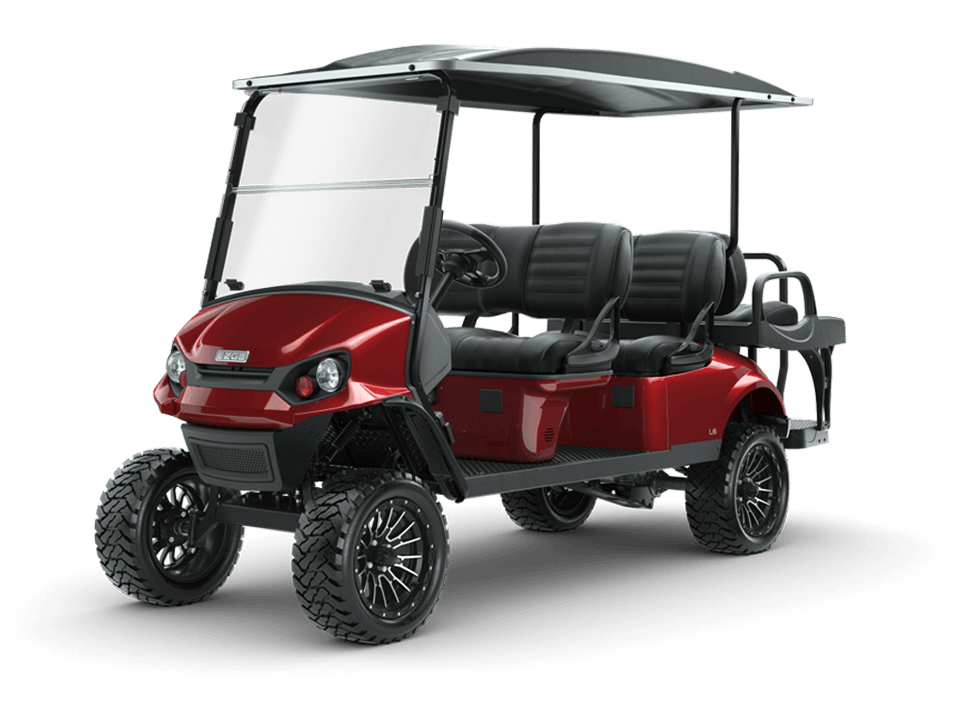

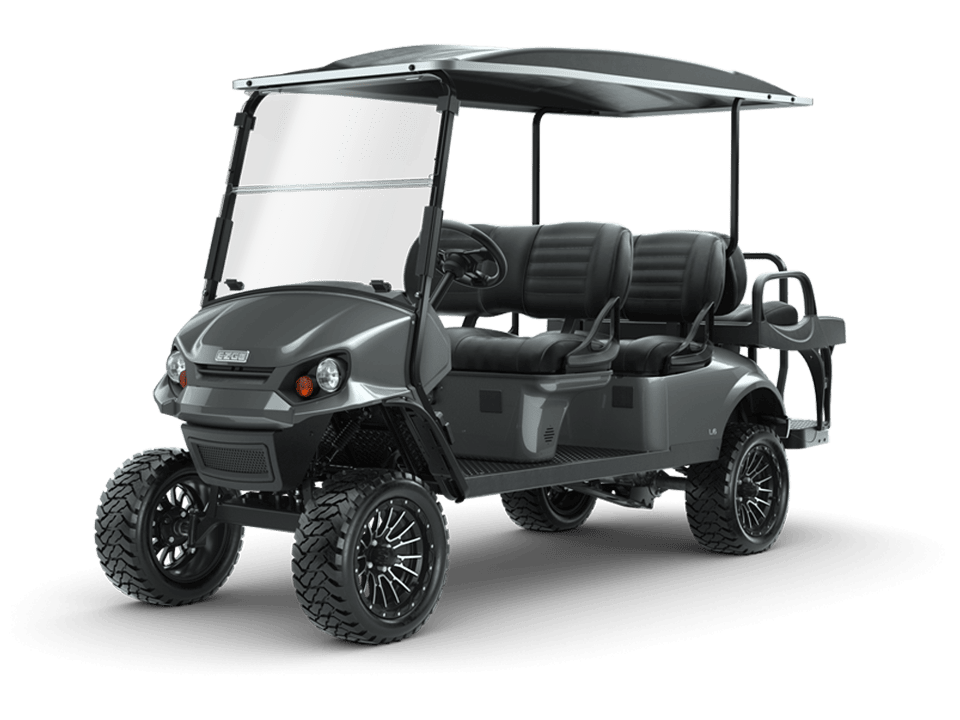

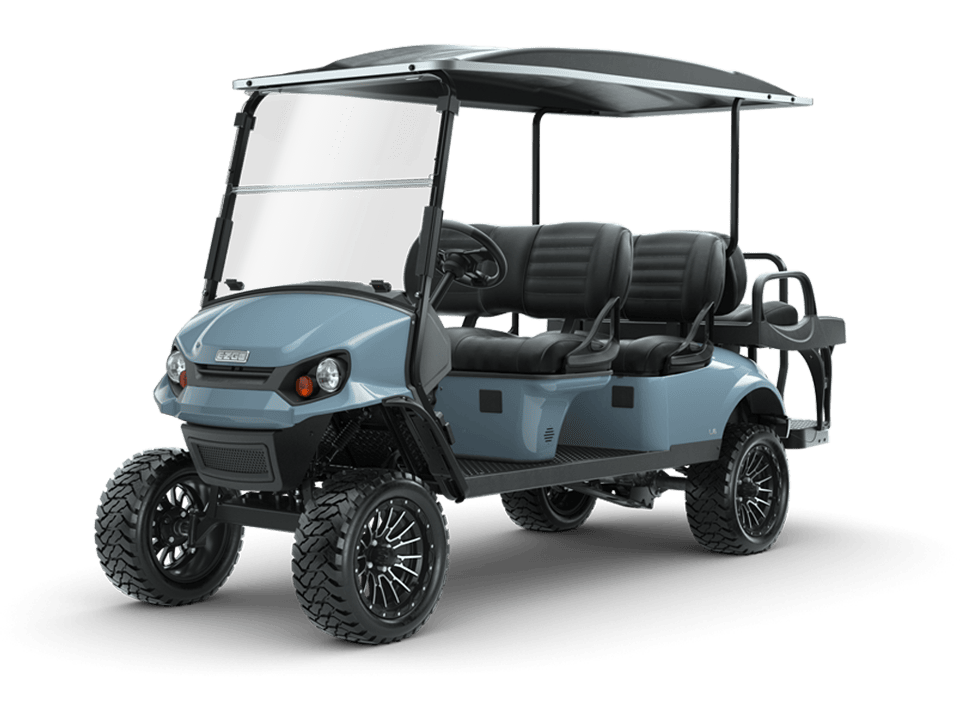

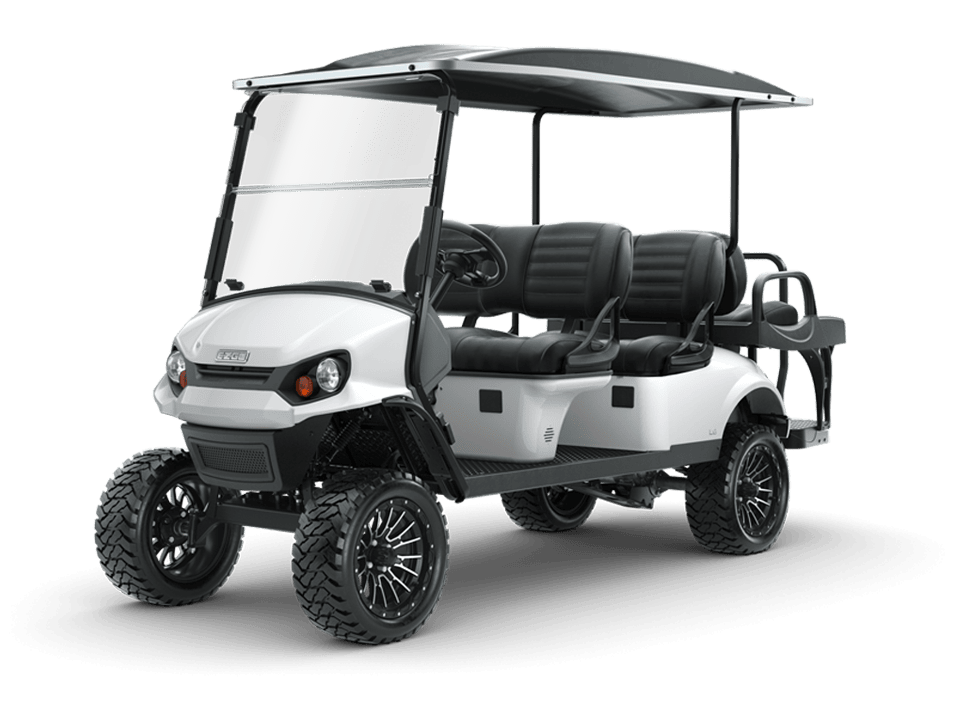

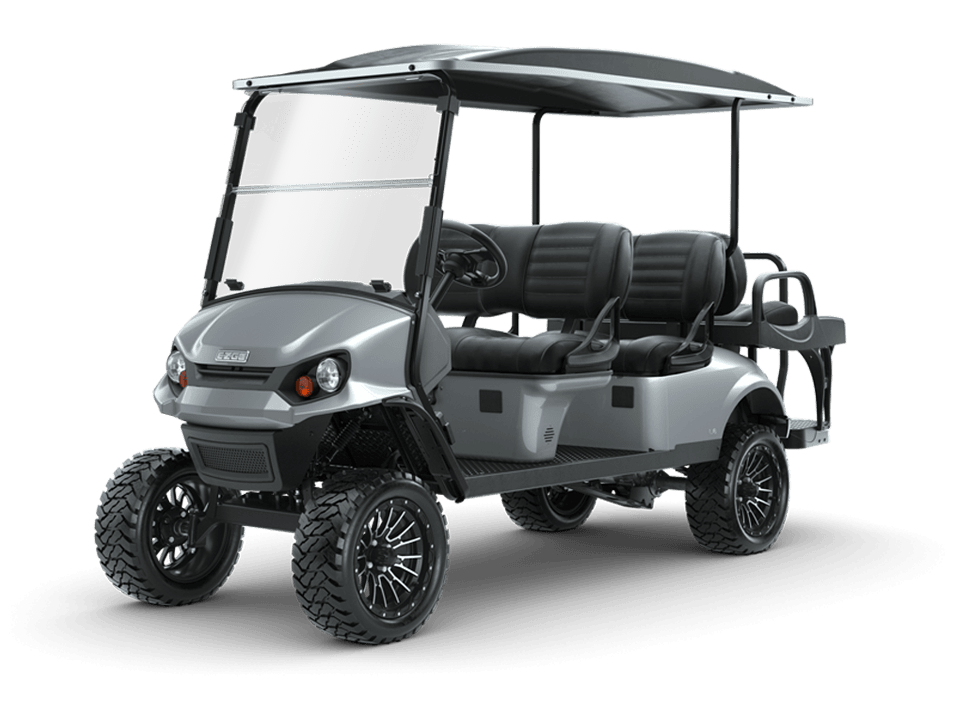

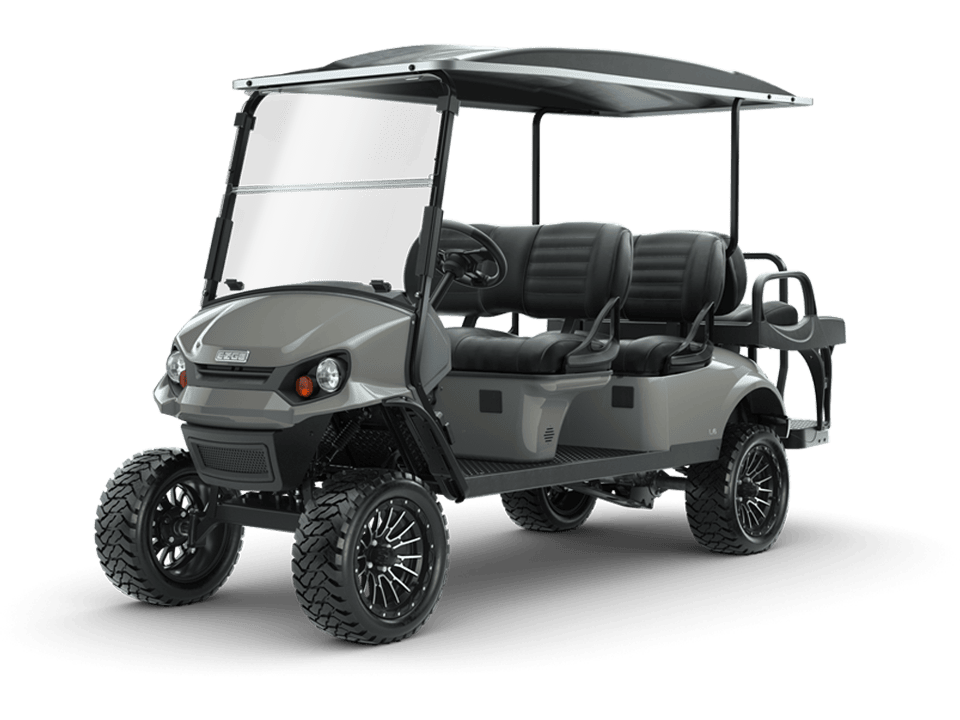

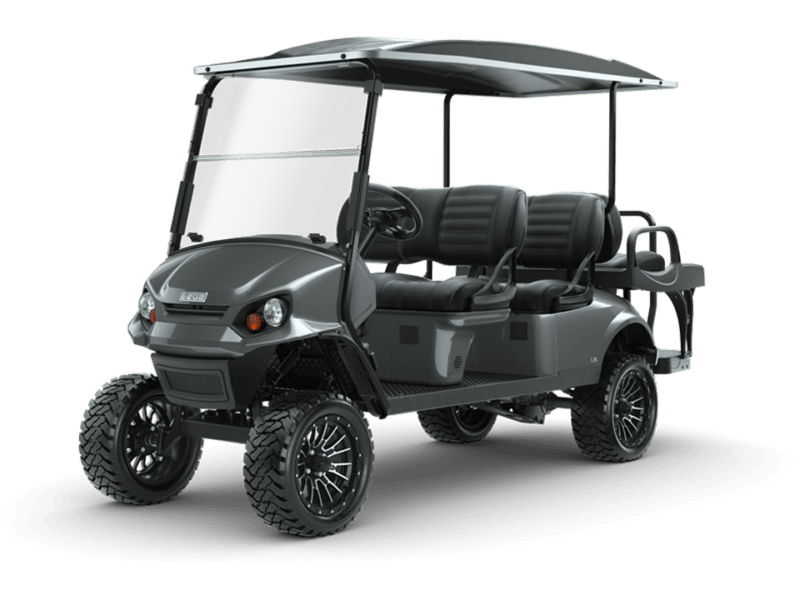

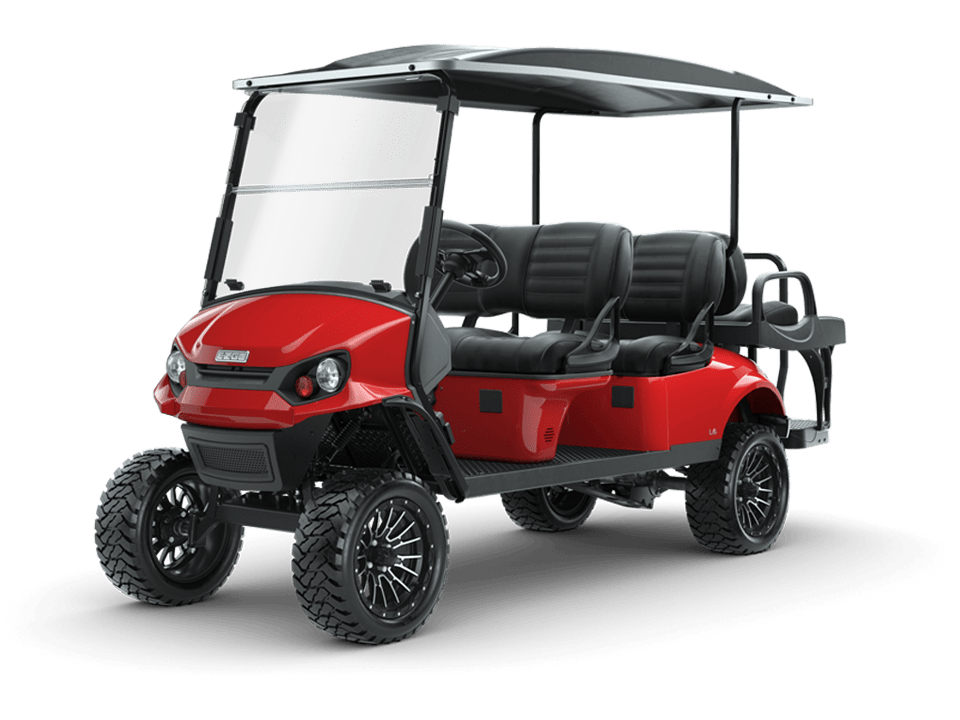

Available Colors | Black, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Gray, Platinum, Bright White, Slate |
Overall Length | 144 in (364 cm) |
Overall Width | 49 in (125 cm) |
Overall Height | 55.5 in (141 cm) (top of steering wheel) (Without Roof) 83 in (211 cm) (top of canopy) (With Roof) |
Wheel Base | 97 in (245 cm) |
Wheel Track | 38.5 in (98 cm) |
Ground Clearance | 7.0in (18 cm) |
Power Source | 4-cycle 24.5 cu in (401 cc) |
Valve Train | Single Cylinder OHV |
Horsepower (KW) | 13.5 hp (10.1 kW) exceeds SAE J1940 standard |
Electrical System | Starter/Generator – Solid State Regulator |
Battery (Qty/Type) | One, 12-volt Maintenance Free |
Key or Pedal Start | Pedal |
Air Cleaner | Replaceable Dry Cartridge |
Lubrication | Pressurized Oil System |
Oil Filter | Spin-on |
Cooling System | Air Cooled |
Fuel Capacity | 5.96 Gallon (22.6 L) Tank |
Drive Train | Continuously Variable Transmission (CVT) |
Transaxle | Differential with helical gears |
Gear Selection | Forward-Reverse |
Seating Capacity | 6-person |
Weight w/o Batteries | 1150 lb (522 kg) |
Curb Weight | 1190 lb (540 kg) |
Vehicle Load Capacity | 1200 lb (544 kg) |
Outside Clearance Circle | 25.5 ft (7.8 m) |
Speed | Up to 19 mph +/- 0.5 mph (Up to 30.6 kph +/- 0.8 kph) |
Steering | Self-compensating rack and pinion |
Suspension | Leaf springs with hydraulic shock absorbers |
Service Brake | Rear wheel mechanical self-adjusting drum brakes |
Parking Brake | Self-compensating, single-point engagement |
Tires | MT Paramount, 23×10-14, Radial, SPDR Alloy Wheel |
