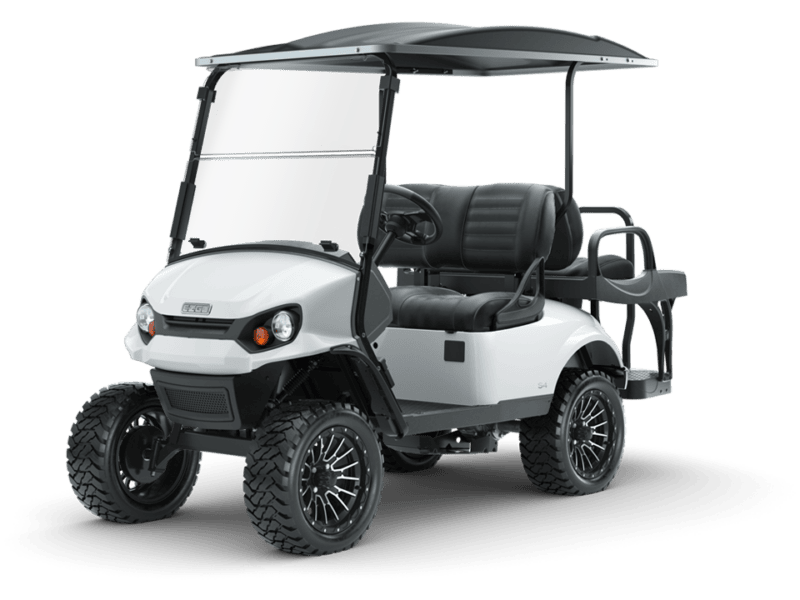

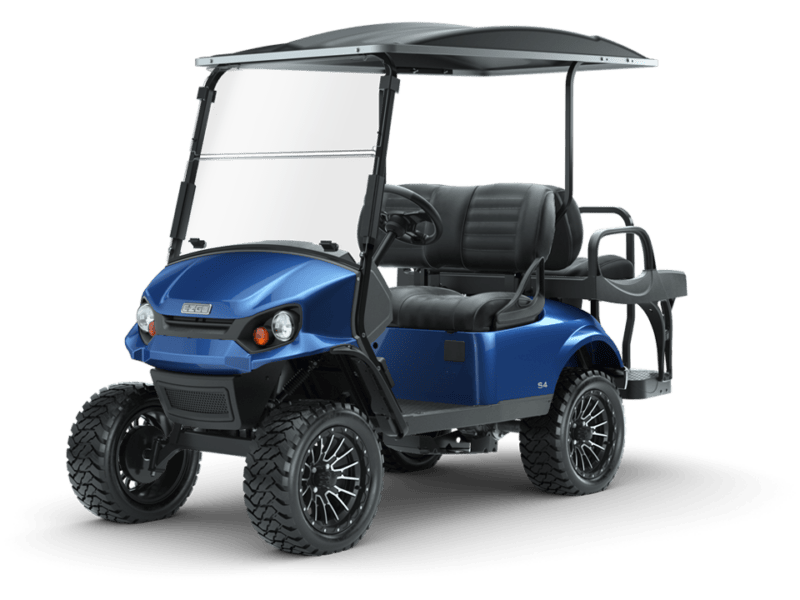

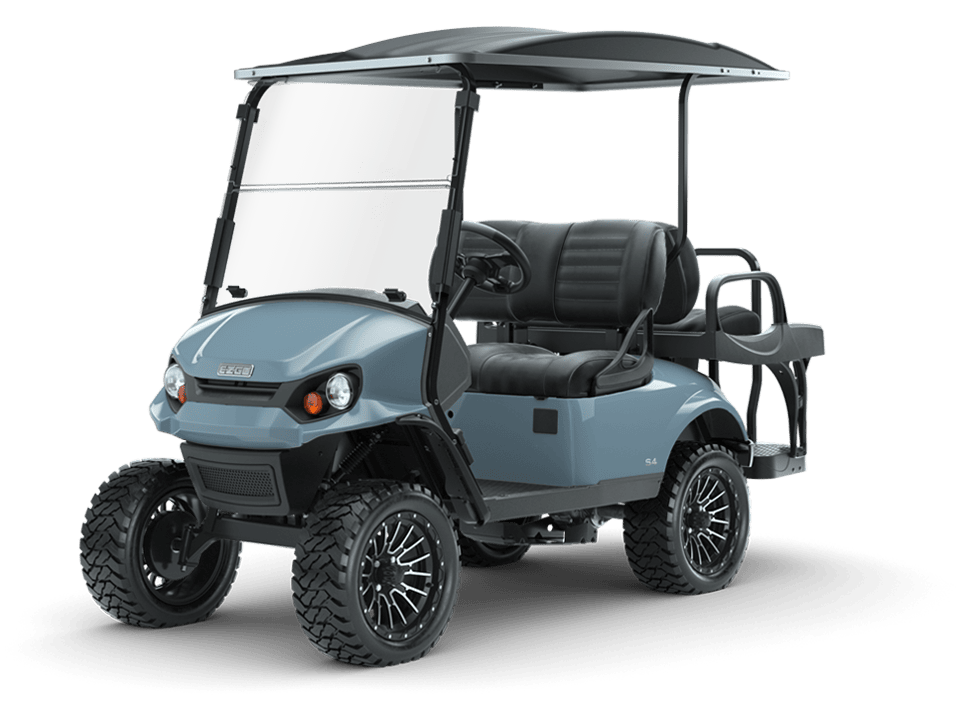

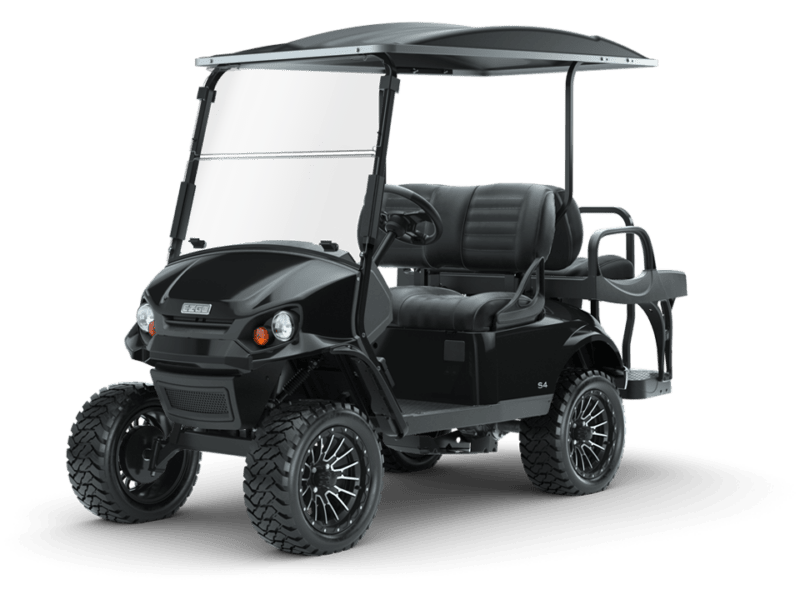

E-Z-GO Express S4 Gas
Every hour is an opportunity to get more out of life, and the E-Z-GO® Express™ S4 ensures you’re always living life right. With seating for four and a rear seat that converts to a cargo deck, the Express S4 can take you anywhere. Choose the Express S4 High Output for increased torque, power, and 30% more hill climb ability. Get behind the wheel of the Express S4 and make every day tasks like mulch moving and mail grabbing beyond fun.
- 13.5-hp gas engine with closed-loop electronic fuel injection
- Standard brush guard
- Fold down cargo deck
| Frame | Welded steel with E-coat & DuraShield powder coat |
|---|---|
| Body & Finish | Injection-molded TPO |
| Available Colors | Black, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Gray, Platinum, Bright White, Slate |
| Overall Length | 115 in (292 cm) |
| Overall Width | 48.5 in (123 cm) |
| Overall Height | 52.5 in (133 cm) (top of steering wheel) 83.0 in (210 cm) (top of canopy) |
| Wheel Base | 65.5 in (166 cm) |
| Wheel Track | (Front) 38.5 in (98 cm) (Rear) 38.5 (98 cm) |
| Ground Clearance | 6.0 in (15 cm) at differential |
| Power Source | 4-cycle, 24.5 cu in (401 cc) |
| Valve Train | Single cylinder OHV with hemispheric combustion chamber |
| Horsepower (KW) | 13.5 hp (10 kW) Exceeds SAE J1940 Std. |
| Electrical System | Starter/generator, solid state regulator |
| Battery (Qty/Type) | One 12-volt, maintenance free |
| Key or Pedal Start | Pedal |
| Air Cleaner | Replaceable dry cartridge |
| Lubrication | Pressurized oil system |
| Oil Filter | Spin-on |
| Cooling System | Air-cooled |
| Fuel Capacity | 5.96 gallons (22.6 L) Tank |
| Drive Train | Automatic, continuously variable transmission (CVT) |
| Transaxle | Differential with helical gears |
| Gear Selection | Dash Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 11.47:1 (Forward) 14.35:1 (Reverse) |
| Fuel System | Closed-Loop Electronic Fuel Injection |
| Seating Capacity | 4-person |
| Weight w/o Batteries | 1061 lb (481 kg) |
| Curb Weight | 1101 lb (499 kg) |
| Vehicle Load Capacity | 800 lb (360 kg) |
| Bed Load Capacity | 19 ft. (5.8 m) |
| Speed | Up to 19 mph +/- 0.5 mph (Up to 30.6 kph +/- 0.8 kph) |
| Steering | Self-compensating rack and pinion |
| Suspension | Leaf springs with hydraulic shock absorbers |
| Service Brake | Rear wheel mechanical self-adjusting drum brakes |
| Parking Brake | Self-compensating, single-point engagement |
| Tires | MT Paramount, 23×10-14, Radial, SPDR Alloy Wheels |
