September 7, 2023Cushman Tour LSV ELiTE Lithium Electric

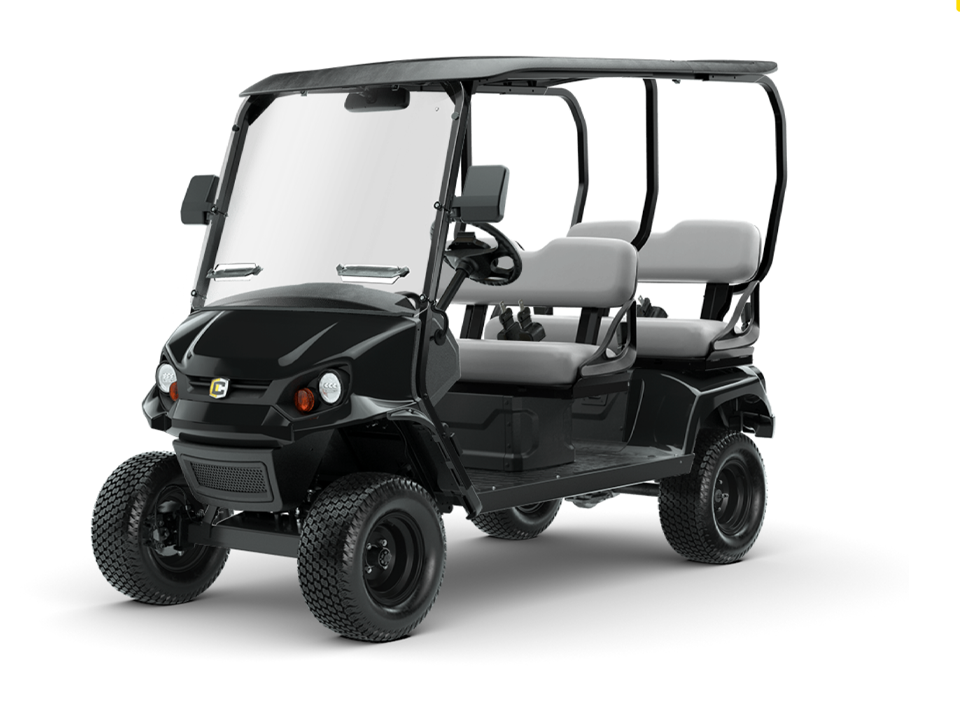

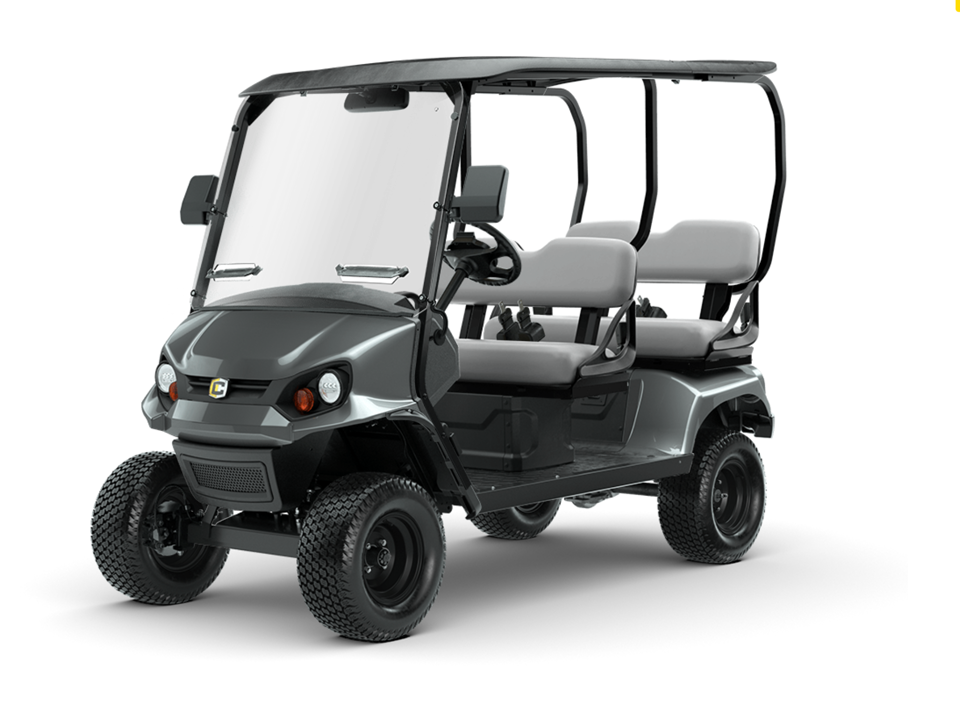

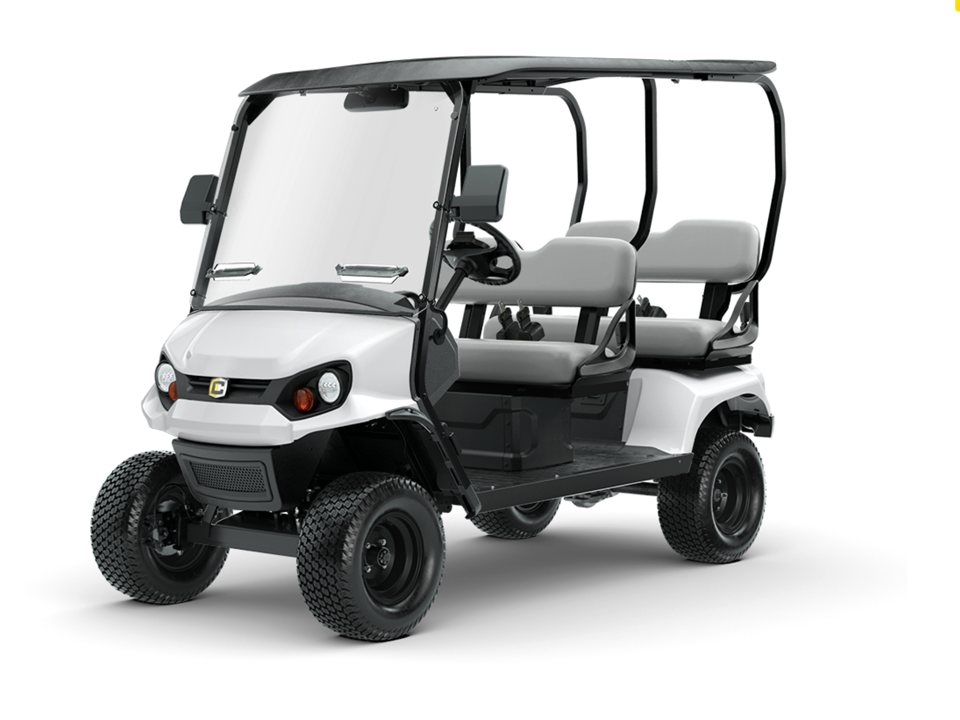

The Cushman Tour LSV offers increased style and flexibility with four-forward facing seats and street-legal capabilities on roads with speed limits up to 35 mph. Provide your passengers and guests with unmatched safety and performance, as the Cushman Tour LSV stands out from competitive vehicles by reaching both FMVSS 500 and SAE J2358 vehicle standards. Outfit the Tour LSV to meet your transportation needs by choosing from optional premium seats, body colors, or accessories.
Frame | Welded Steel w/ DuraShield™ Powder Coat and E-Coat |
---|---|
Body & Finish | Front: Injection Molded TPO, Rear: Thermoform ABS |
Standard Color | Patriot Blue |
Overall Length | 106.25 in (270 cm) |
Overall Width | 46 in (117 cm) |
Overall Height | No Canopy: 52.5 in (133 cm), With Canopy: 75.63 in (192 cm) |
Wheel Base | 77.63 in (197 cm) |
Wheel Track | Front: 38 in (97 cm), Rear: 39 in (99 cm) |
Ground Clearance | 7.25 in (18 cm) |
Power Source | 39.2 – 56.7 V Li-Ion Battery |
Horsepower (KW) | Peak: 11.7 hp (8.7 kW), Continuous: 4.4 hp (3.3 kW) |
Electrical System | 48V primary, 12V auxiliary |
Battery (Qty/Type) | Single, 56.7V Max Li-Ion Composite Module and Cell Module ("Twin Pack") |
Key or Pedal Start | Pedal |
Drive Train | Motor Shaft Direct Drive |
Transaxle | Limited Slip Differential w/ Helical Gears |
Gear Selection | Dash Mounted F-N-R / Key Switch |
Rear Axle Ratio | 16.99:1 (Forward) |
Seating Capacity | 4-Person |
Weight W/O Batteries | 966 lb (437 kg) |
Vehicle Load Capacity | 800 lb (363 kg) |
Speed | 25 mph (40.2 kph) |
Steering | Self-Compensating Reduction Rack & Pinion |
Suspension | Leaf Springs w/ Hydraulic Shock Absorbers |
Service Brake | Front: 4-Wheel Hydraulic w/ Front Disk, Rear Self-Adjusting Drum |
Parking Brake | Automatic Electromagnetic |
Tires | Kenda K500 20 x 8 – 10 (6-ply Rated) |
Filter by Power Source | |
Curb Weight | 1040 lb (471 kg) |
