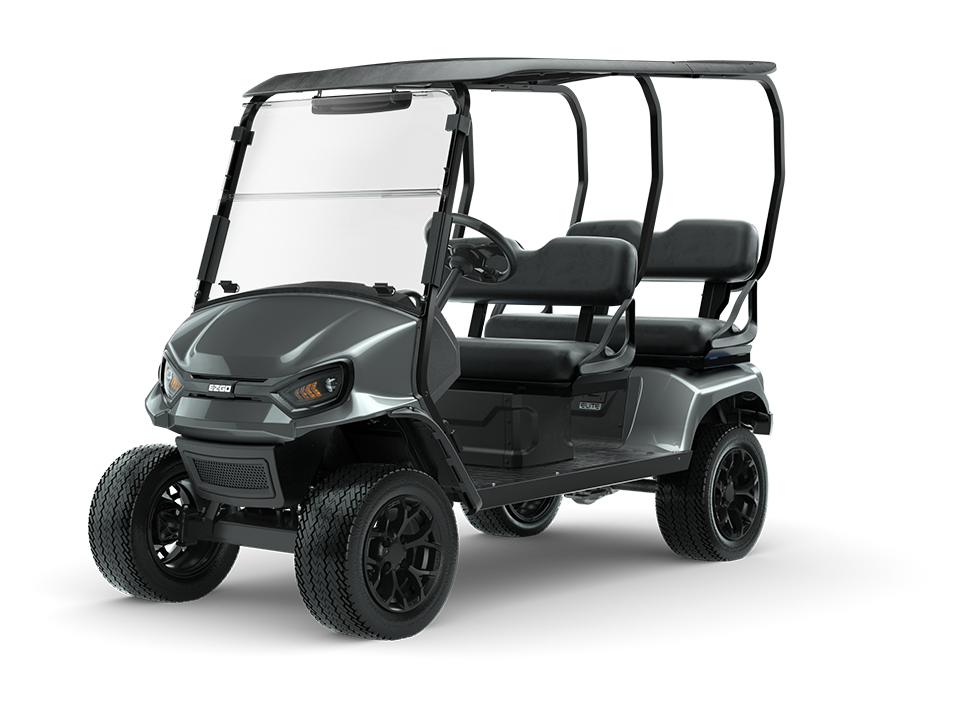

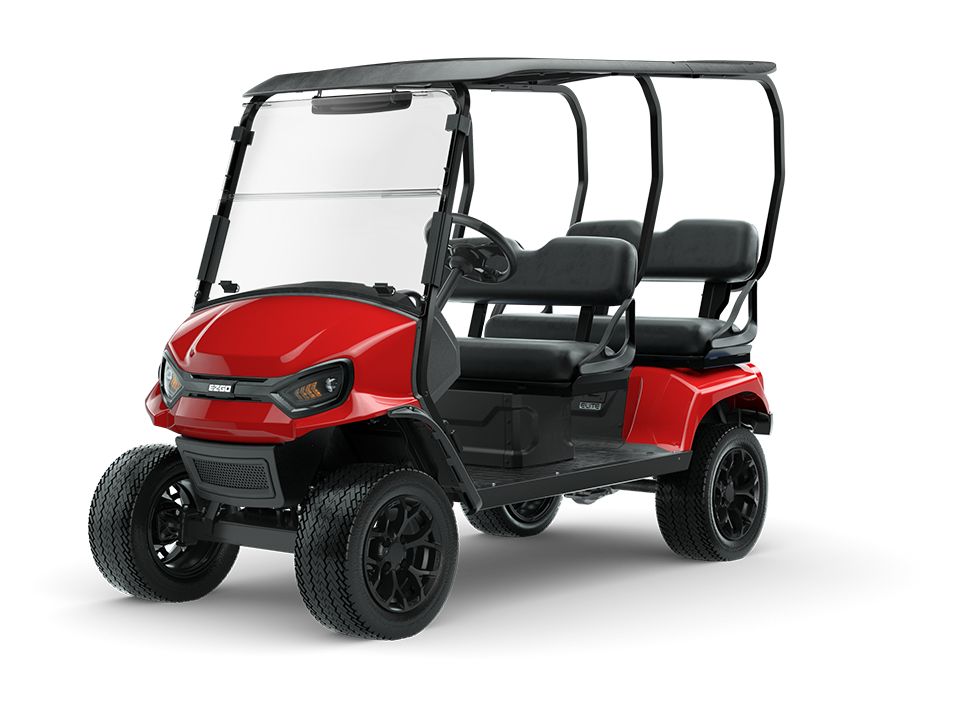

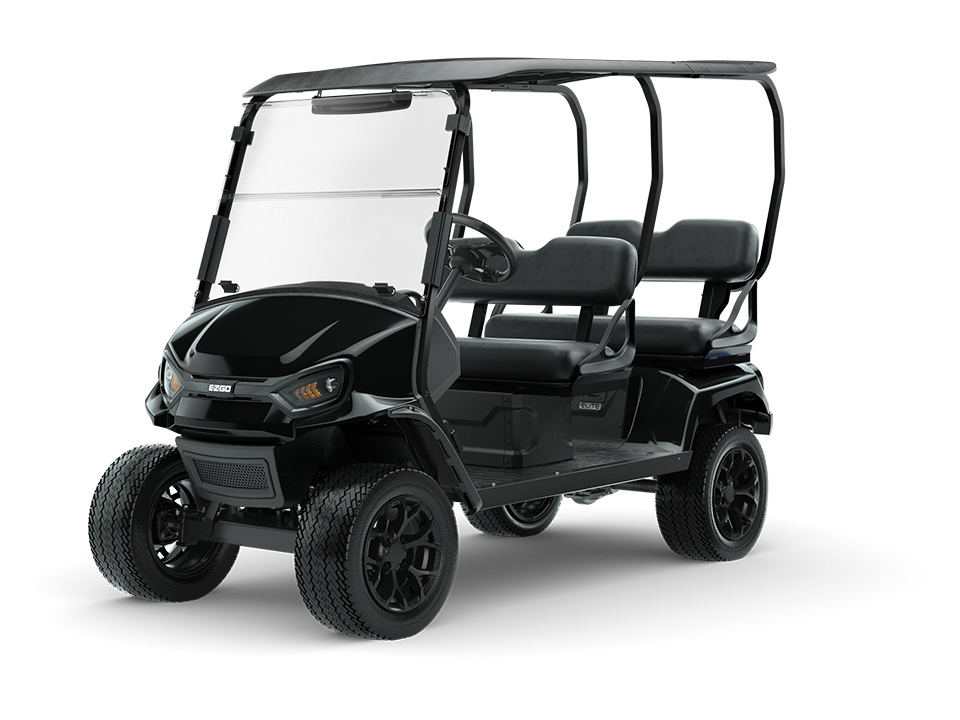

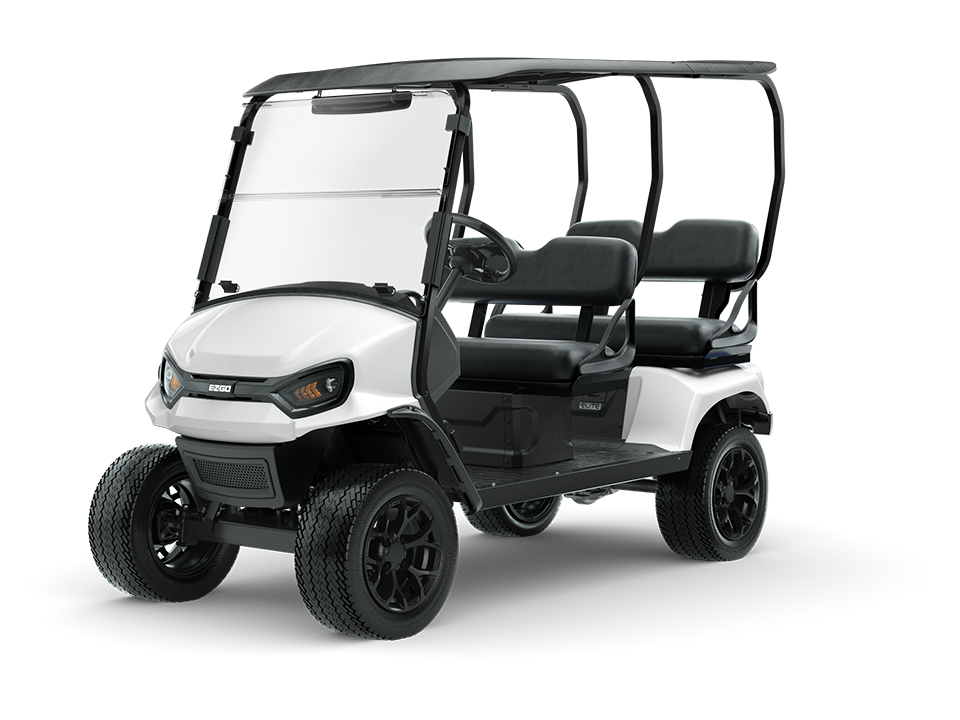

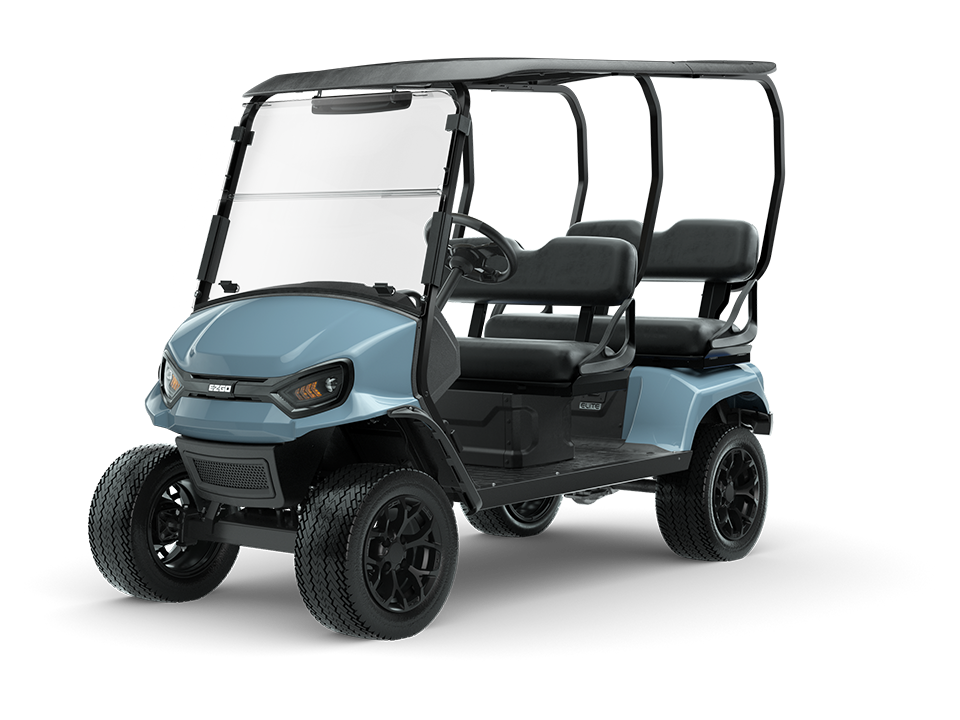

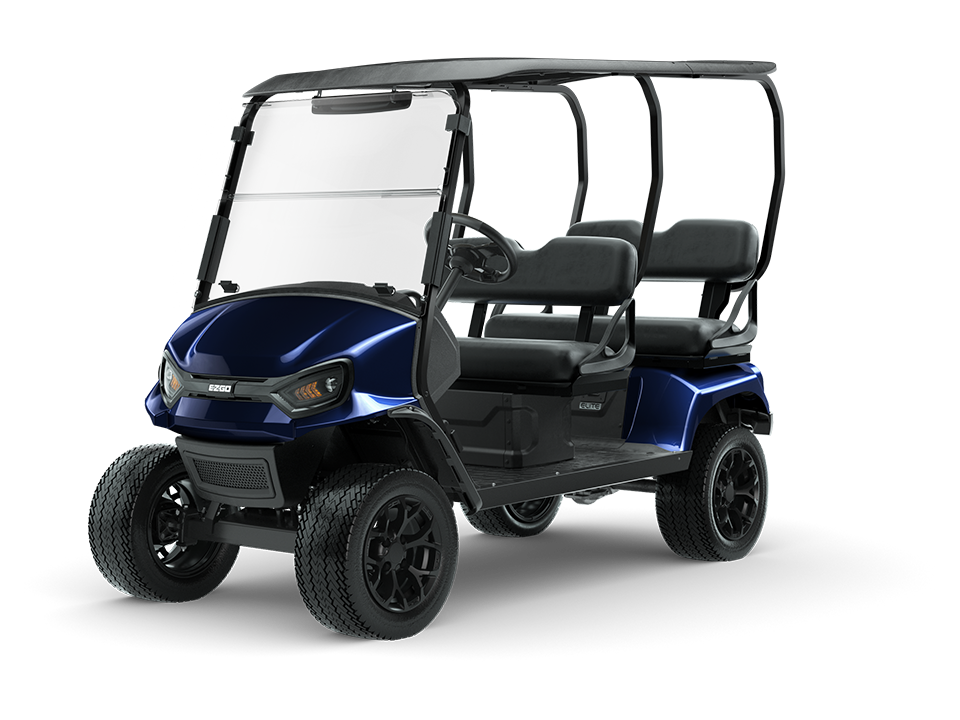

E-Z-GO Liberty LSV
Take on More Roads. The Liberty features all-new headlights with the same curated packages and four forward-facing seats that make this vehicle standout. Driven by ELiTE lithium power and packed with premium features, the Liberty is designed to stand out.
- LED Headlights
- Four Forward-Facing Seats
- Samsung SDI Technology
| Frame | Welded Steel with DuraShield™ Powder Coat |
|---|---|
| Body & Finish | Injection Molded TPO |
| Available Colors | Black, Patriot Blue, Flame Red, Metallic Charcoal, Ocean Gray, Slate, White |
| Overall Length | 106 in (269 cm) |
| Overall Width | 48 in (122 cm) |
| Overall Height | 52.5 in (133 cm) (top of steering wheel) (Without Roof) 76 in (193 cm) (top of canopy) (With Roof) |
| Wheel Base | 76.5 in (194 cm) |
| Wheel Track | 38 in (97 cm) (Front) 39 in (99 cm) (Rear) |
| Ground Clearance | 5.5 in (14 cm) |
| Power Source | 56.7 V Max |
| Valve Train | AC Induction |
| Horsepower (KW) | 11.7 hp (8.7 kW) |
| Electrical System | 48 VDC |
| Battery (Qty/Type) | ELiTE 2.2, Single 56.7V Max Lithium |
| Key or Pedal Start | Pedal |
| Drive Train | Direct-Drive AC Induction Motor |
| Transaxle | Differential with Helical Gears |
| Gear Selection | Dash Mounted FNR/Key Switch |
| Seating Capacity | 4-person |
| Curb Weight | 960 lb (435 kg) |
| Vehicle Load Capacity | 800 lb (363 kg) |
| Outside Clearance Circle | 25.7 ft (7.83 m) |
| Speed | Up to 19 mph ± 0.5 mph (Up to 30.6 kph ± 0.8 kph) |
| Steering | Self-Compensating Reduction Rack and Pinion |
| Suspension | Leaf Springs with Hydraulic Shock Absorbers |
| Service Brake | Dual Rear Wheel Mechanical Self-Adjusting Drum |
| Parking Brake | Automatic Electro-Magnetic (ELiTE Only) |
| Tires | MT Paramount, 23×10-14, Radial, Black SPDR Alloy Wheel |
