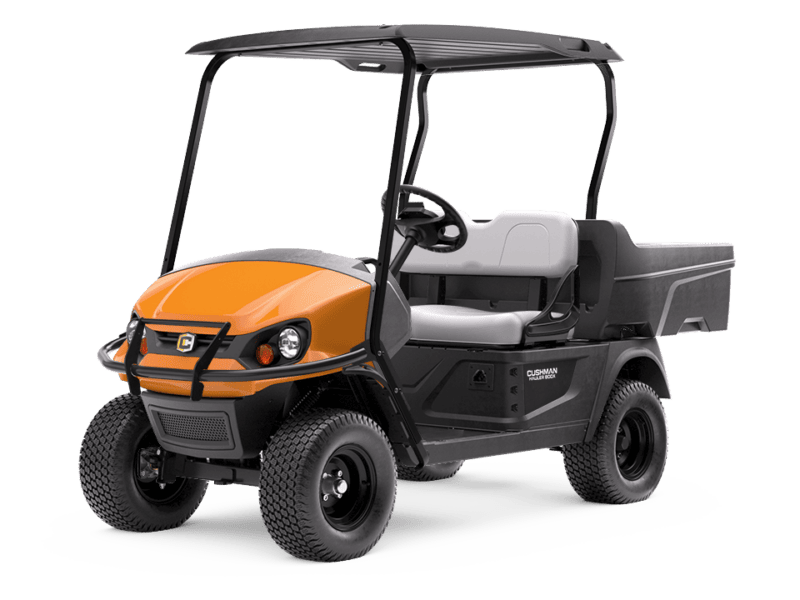

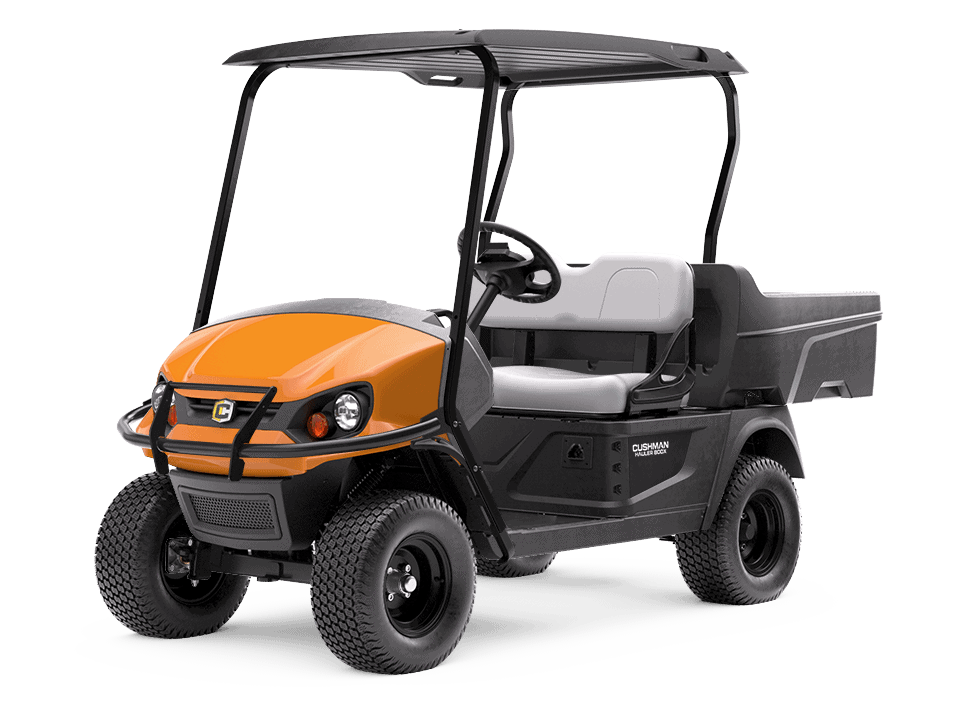

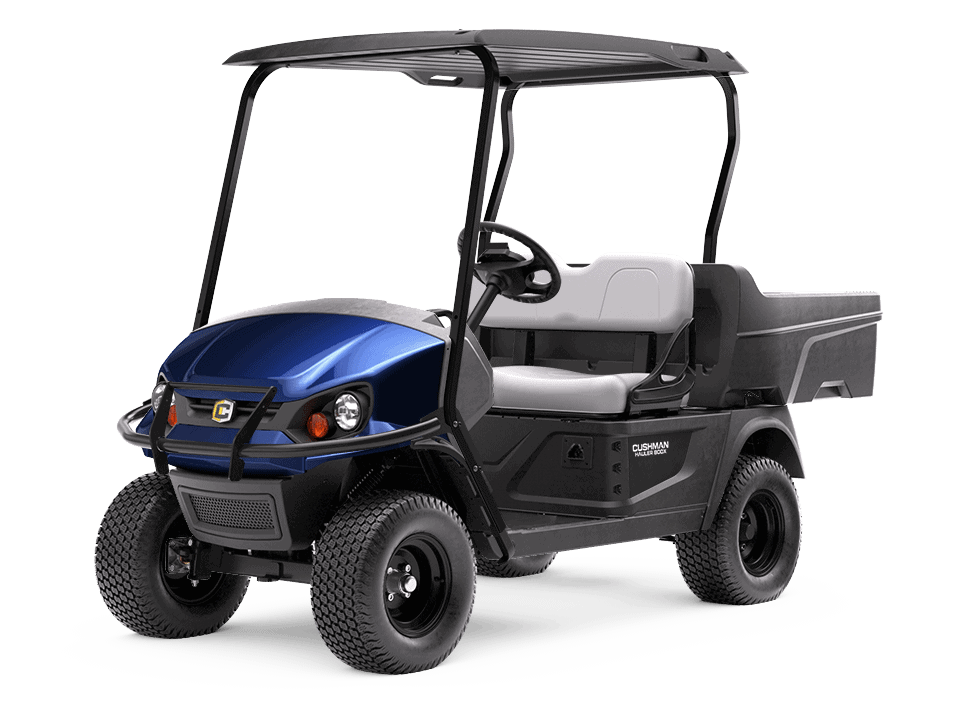

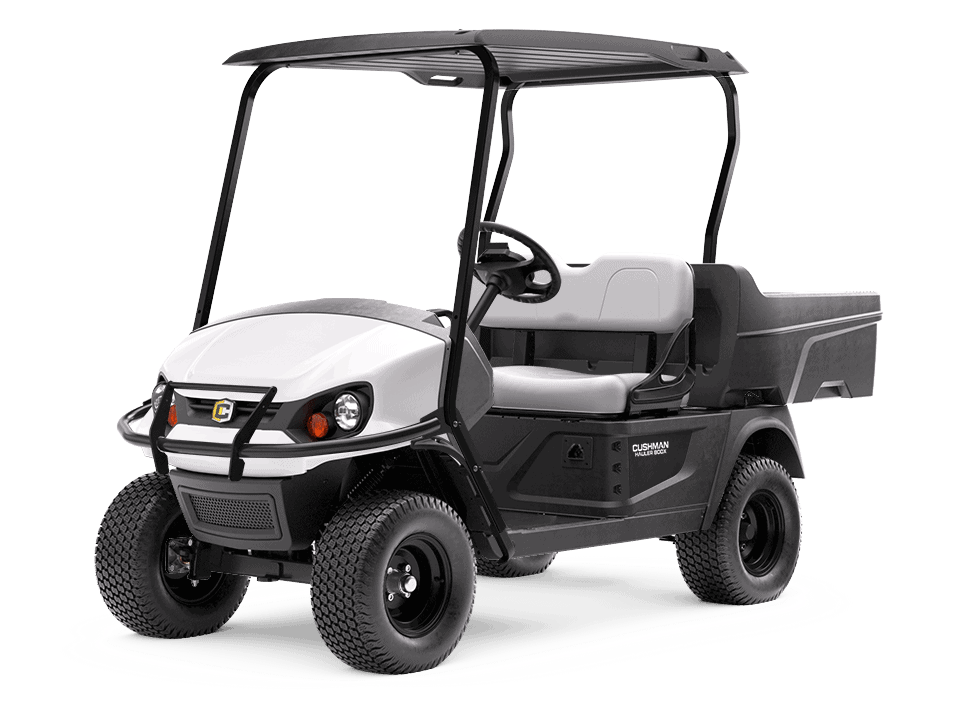

Cushman Hauler 800X ELiTE Lithium Electric
With the option of a fuel-efficient 13.5 hp EFI gas engine or maintenance-free ELiTE lithium powered by Samsung SDI Technology, the ability to optimize operations is made simple. The 8.4-cubic-feet cargo bed, lifted suspension, and optional accessories create versatile solutions for any facility. Tough and reliable to the core, experience the true utility of the Hauler 800X.
- 11.7 hp 56.7V Lithium Battery
- 500 lb Towing Capacity
- 725 lb Vehicle Load Capacity
| Frame | Welded Steel w/ E-Shield e-coat plus DuraShield™ Powder Coat |
|---|---|
| Body & Finish | Front: Injection Molded TPO, Rear: Injection Molded PP |
| Available Colors | Black, Bright White, Flame Red, Forest Green, Metallic Charcoal, Orange, Patriot Blue, Safety Yellow |
| Overall Length | 110 in (280 cm) |
| Overall Width | 49 in (125 cm) |
| Overall Height | No Canopy: 51 in (129.5 cm), With Canopy: 74 in (188 cm) |
| Wheel Base | 65.5 in (166 cm) |
| Wheel Track | Front: 37 in (94.0 cm), Rear: 38 in (96.5 cm) |
| Ground Clearance | 5.5 in (14 cm) |
| Cargo Deck Capacity | 8.4 cu ft (0.24 m3) |
| Cargo Deck Material | Roto-Molded Polyethylene |
| Power Source | 56.7V Lithium Battery |
| Valve Train | Single Cylinder OHV |
| Horsepower (KW) | 11.7 hp (8.7 kW) Peak |
| Electrical System | 48V |
| Battery (Qty/Type) | 2.2 ELiTE – Single Pack |
| Key or Pedal Start | Pedal |
| Drive Train | Motor Shaft Direct Drive |
| Transaxle | Differential w/ Helical Gears |
| Gear Selection | Dash Mounted: Forward-Neutral-Reverse |
| Rear Axle Ratio | 16.99:1 |
| Seating Capacity | 2 Person |
| Curb Weight | 821 lb (372.4 kg) |
| Vehicle Load Capacity | 725 lb (328.9 kg) |
| Towing Capacity | 500 lb (226.8 kg) Max Load |
| Bed Load Capacity | 325 lb (147.4 kg) |
| Outside Clearance Circle | 18.9 ft (5.8 m) |
| Speed | 16.5 mph ± 0.5 mph (26.5 kph ± 0.8 kph) |
| Steering | Self-Compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Parking Brake | Self-Compensating, Single-Point Engagement |
| Tires | 20 x 8 – 10 (6 Ply-Rated) |
