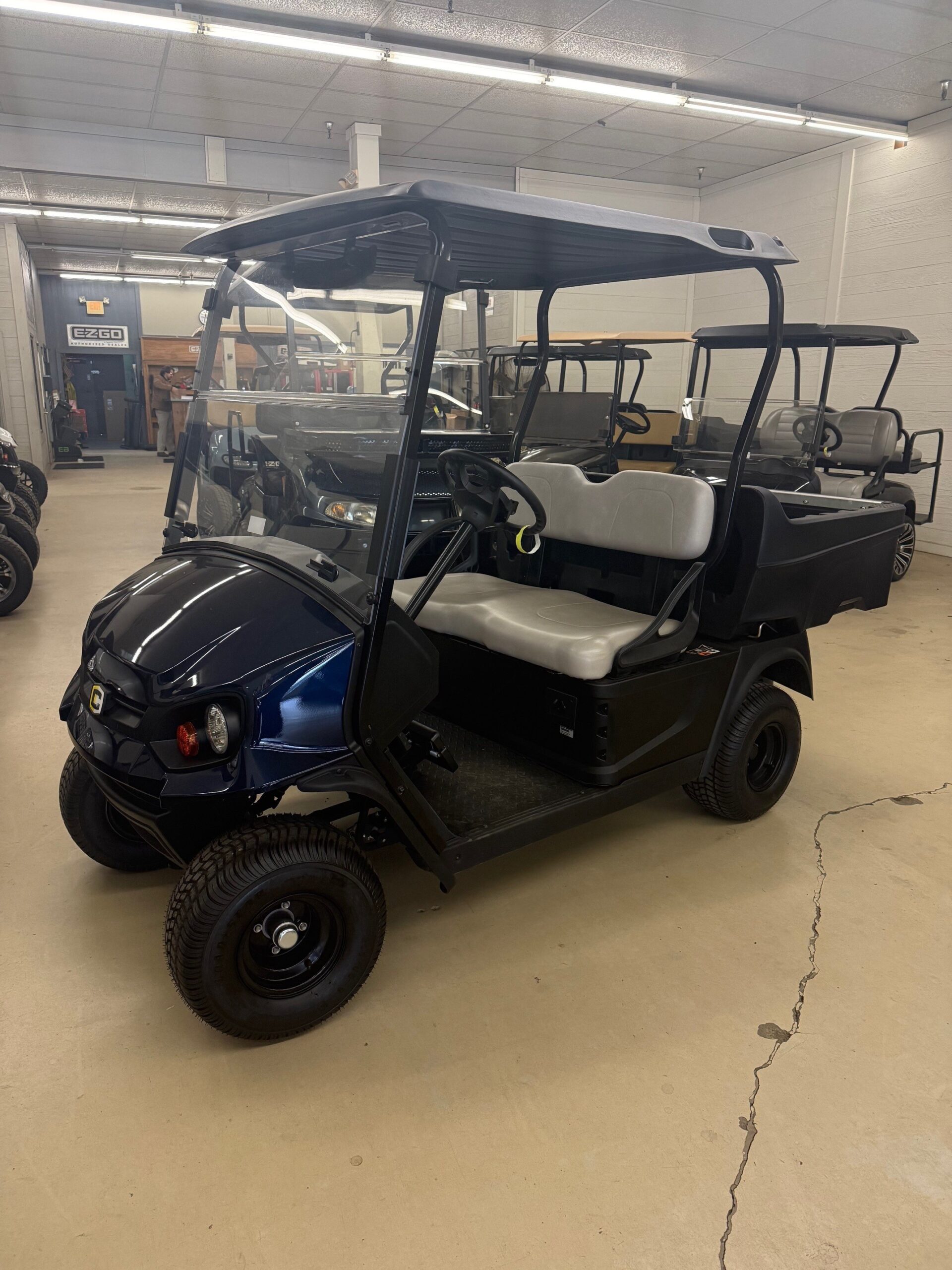

Cushman Hauler 800 ELiTE Lithium Electric
July 24, 2023

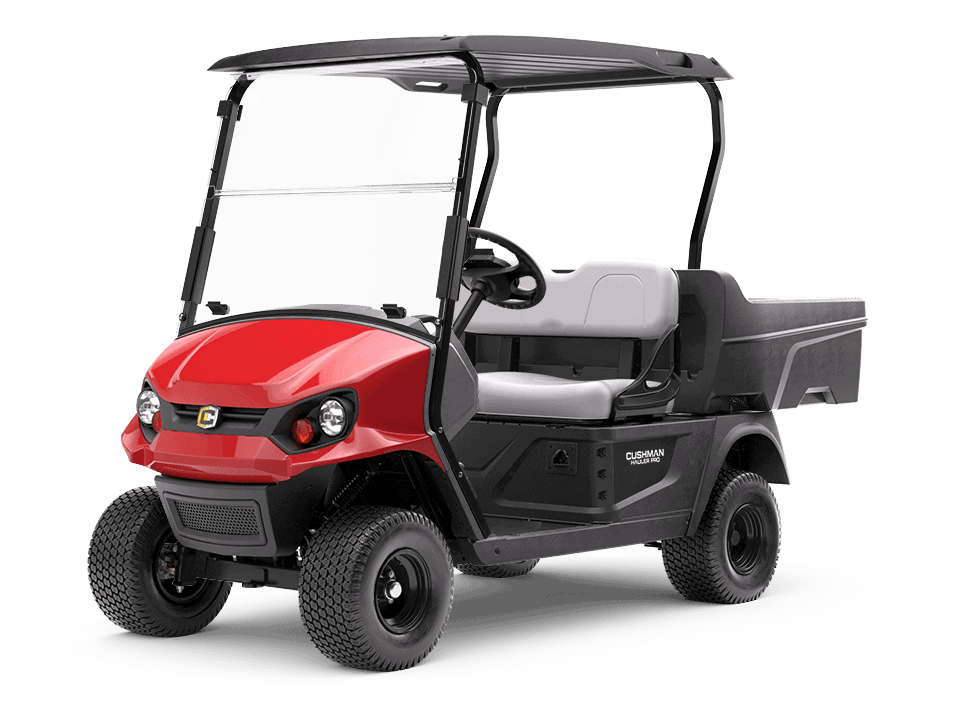

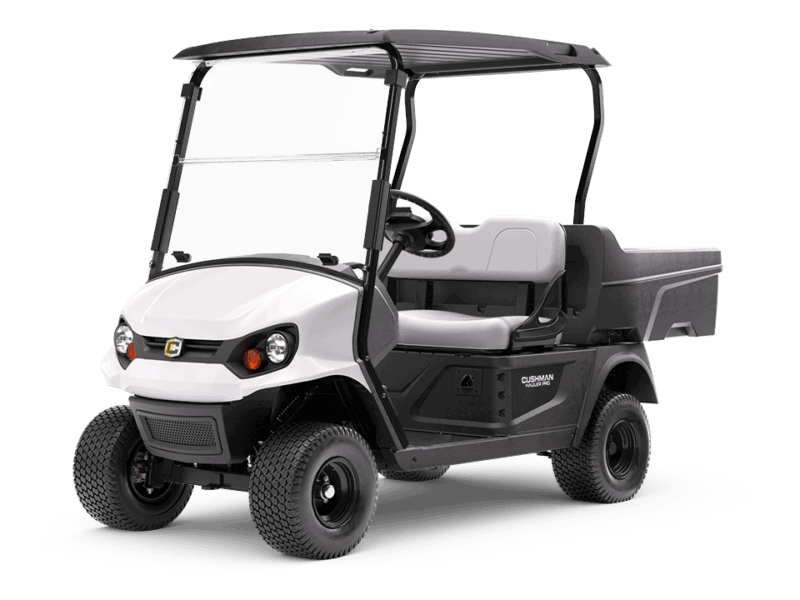

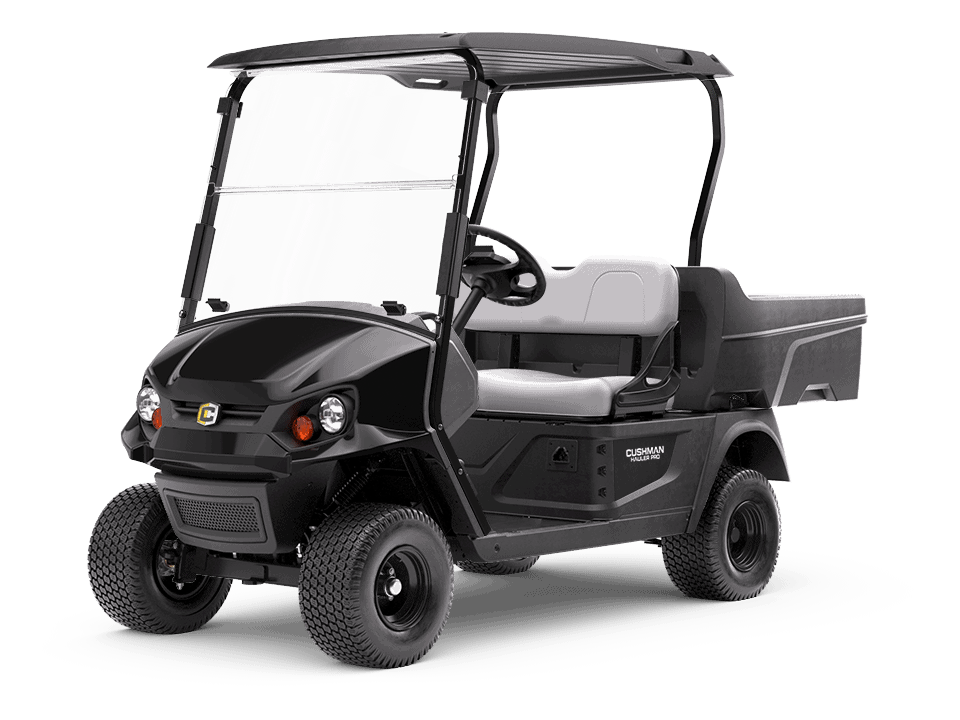

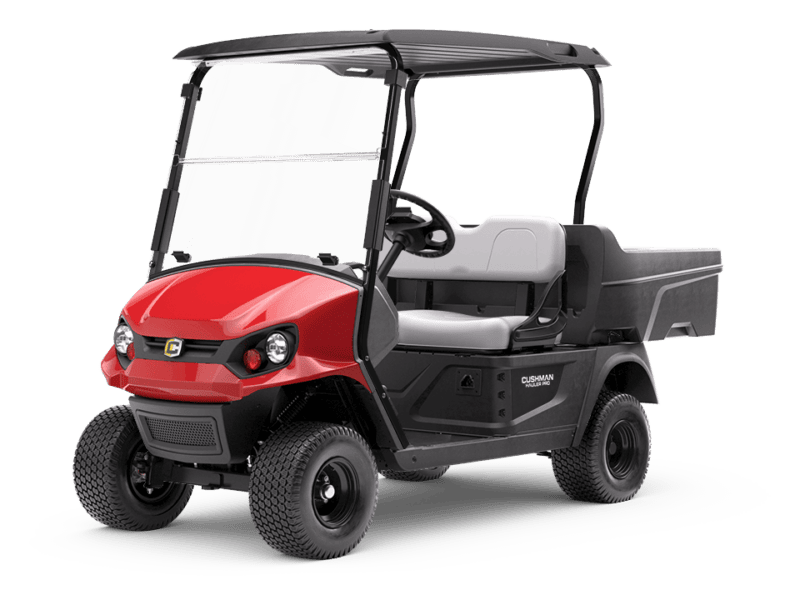

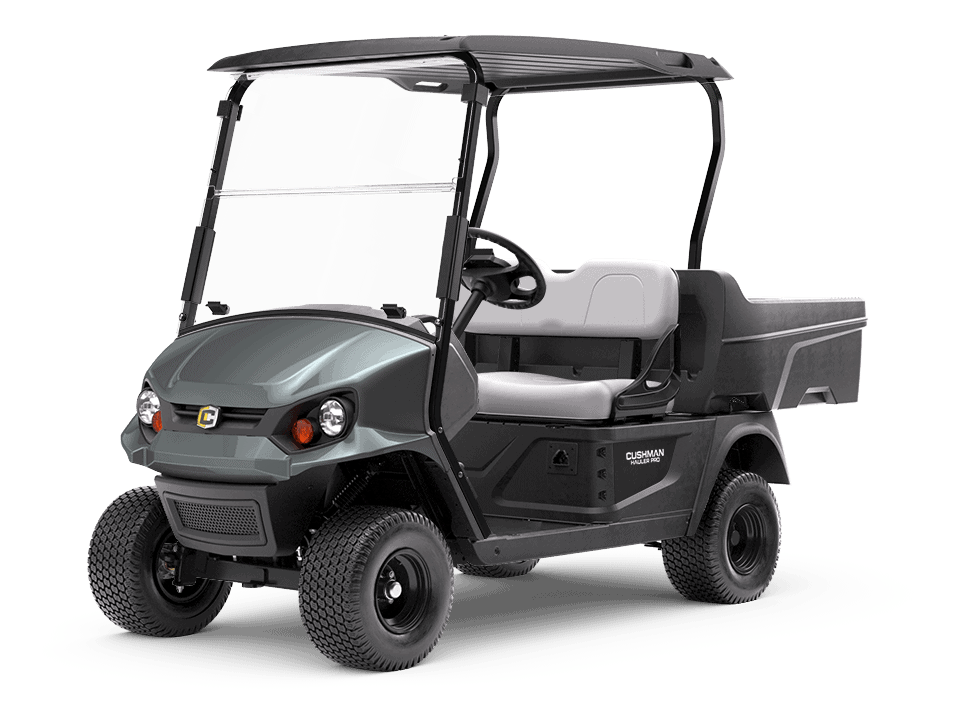

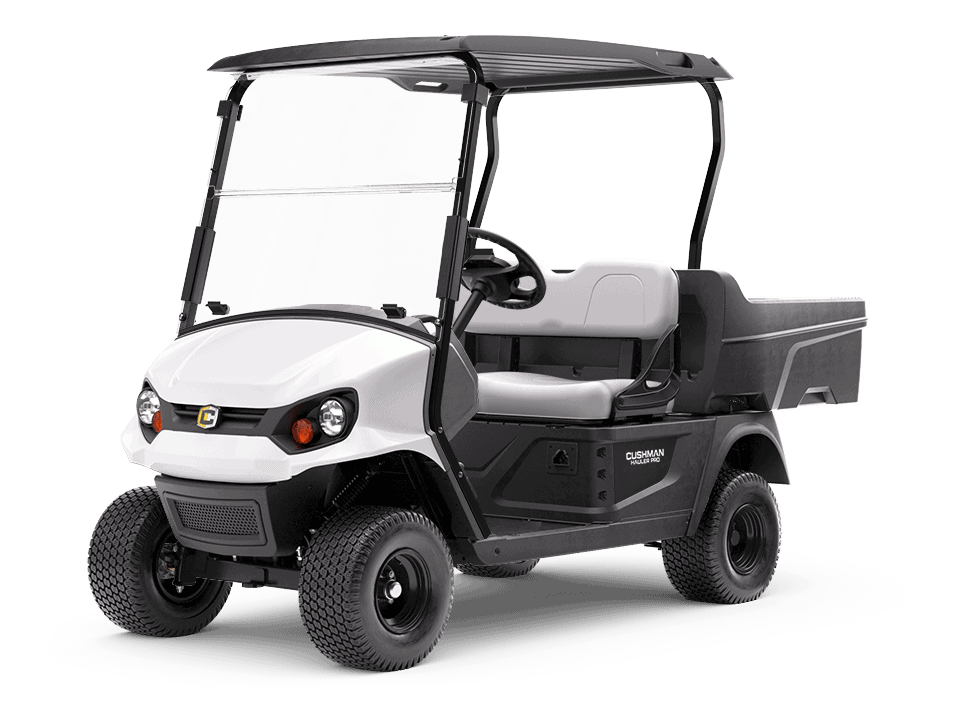

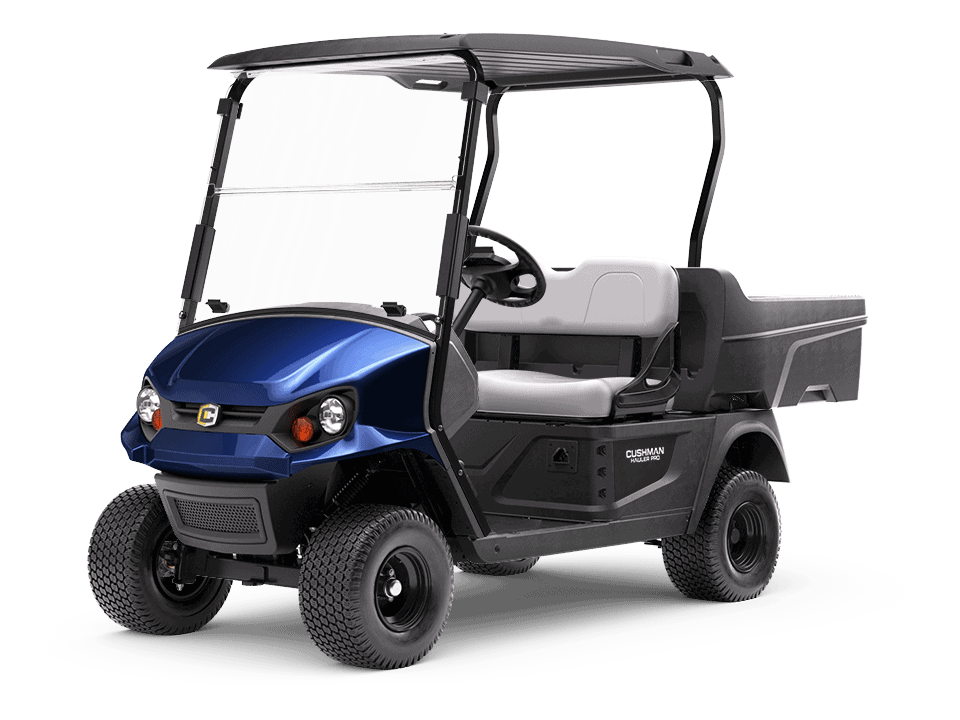

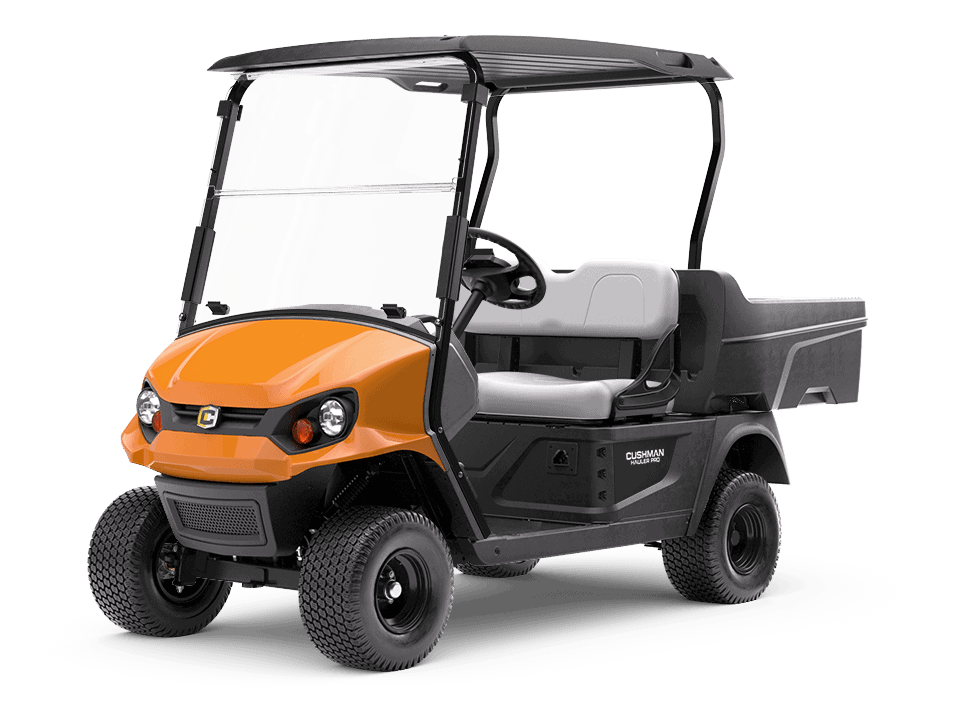

Cushman Hauler 800 Gas
The Hauler 800 is designed for productivity. Easily transport tools and equipment around any course with your choice of maintenance-free ELiTE lithium powered by Samsung SDI Technology or a fuel-efficient 13.5 hp electronic fuel injection gas engine. Expect nothing less than the best with the proven performance and versatility of the Hauler 800.
- 13.5 – hp gas engine with closed-loop electronic fuel injection
- 900 lb Towing Capacity
- 800 lb Vehicle Load Capacity
| Frame | Welded Steel w/ E-Shield e-coat plus DuraShield™ Powder Coat |
|---|---|
| Body & Finish | Front: Injection Molded TPO, Rear: Injection Molded PP |
| Available Colors | Black, Bright White, Flame Red, Forest Green, Metallic Charcoal, Orange, Patriot Blue, Safety Yellow |
| Overall Length | 110 in (280 cm) |
| Overall Width | 49 in (125 cm) |
| Overall Height | No Canopy: 47 in (120 cm), With Canopy: 69.5 in (176. cm) |
| Wheel Base | 65.5 in (166 cm) |
| Wheel Track | Front: 37.0 in (94 cm), Rear: 38.0 in (97 cm) |
| Ground Clearance | 4.3 in (11 cm) |
| Cargo Deck Capacity | 8.4 cu ft (0.24 m3) |
| Cargo Deck Material | Roto-Molded Polyethylene |
| Power Source | 4-Cycle, 24.5 cu in (401cc) |
| Valve Train | Single Cylinder OHV |
| Horsepower (KW) | 13.5 hp (10.1 kW) |
| Electrical System | Starter/Generator – Solid State Regulator |
| Battery (Qty/Type) | One, 12-volt Maintenance Free |
| Key or Pedal Start | Pedal |
| Air Cleaner | Industrial Rated Dry Filter |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-on |
| Cooling System | Air Cooled |
| Fuel Capacity | 5.96 Gallon (22.6 L) Tank |
| Drive Train | Continuously Variable Transmission (CVT) |
| Transaxle | Differential w/ Helical Gears |
| Gear Selection | Forward – Reverse |
| Rear Axle Ratio | 11.47:1 (Forward), 14.35:1 (Reverse) |
| Seating Capacity | 2 Person |
| Curb Weight | 791 lb (358.8 kg) |
| Vehicle Load Capacity | 800 lb (362.9 kg) |
| Towing Capacity | 900 lb (408.2 kg) Max Load |
| Bed Load Capacity | 400 lb (181.4 kg) |
| Outside Clearance Circle | 18.9 ft (5.8 m) |
| Speed | 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph) |
| Steering | Self-Compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Parking Brake | Self-Compensating, Single-Point Engagement |
| Tires | 18 x 8.5 – 8 (6 Ply-Rated) |
