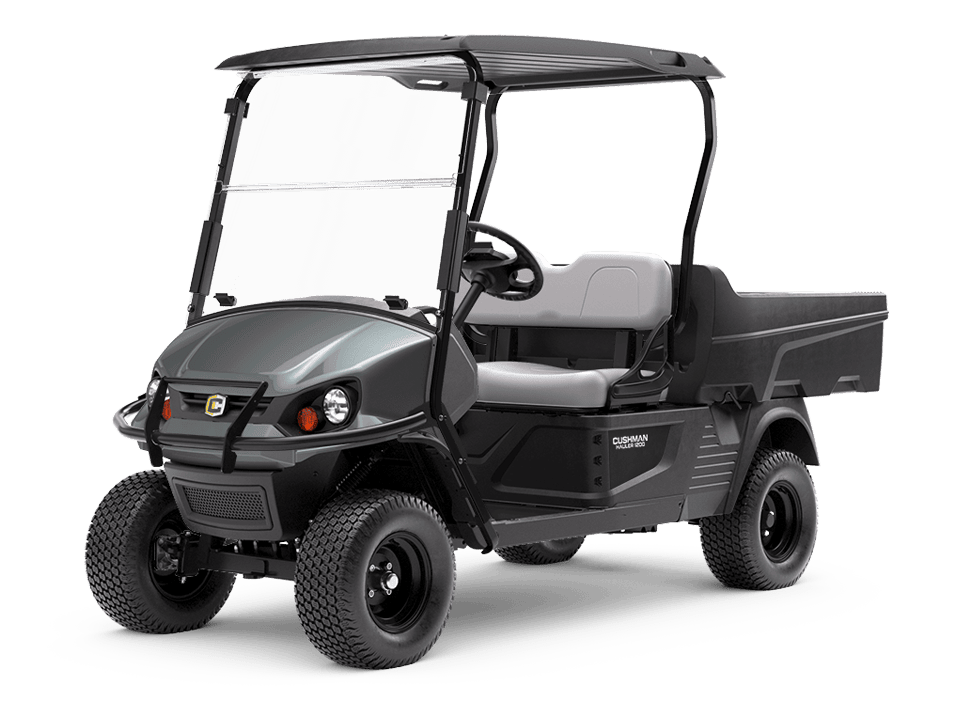

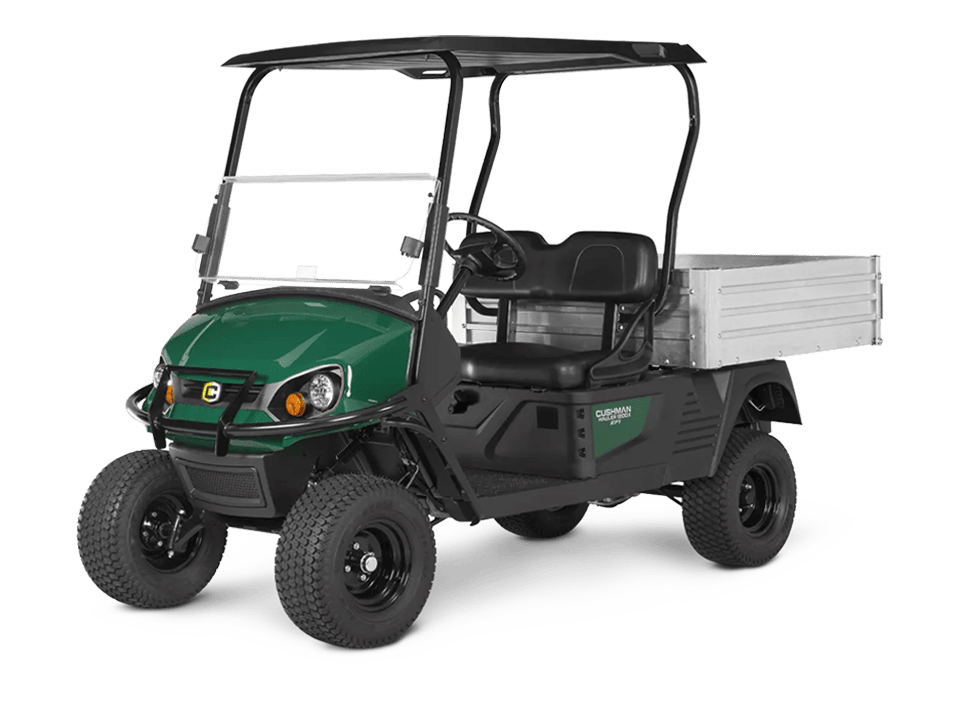

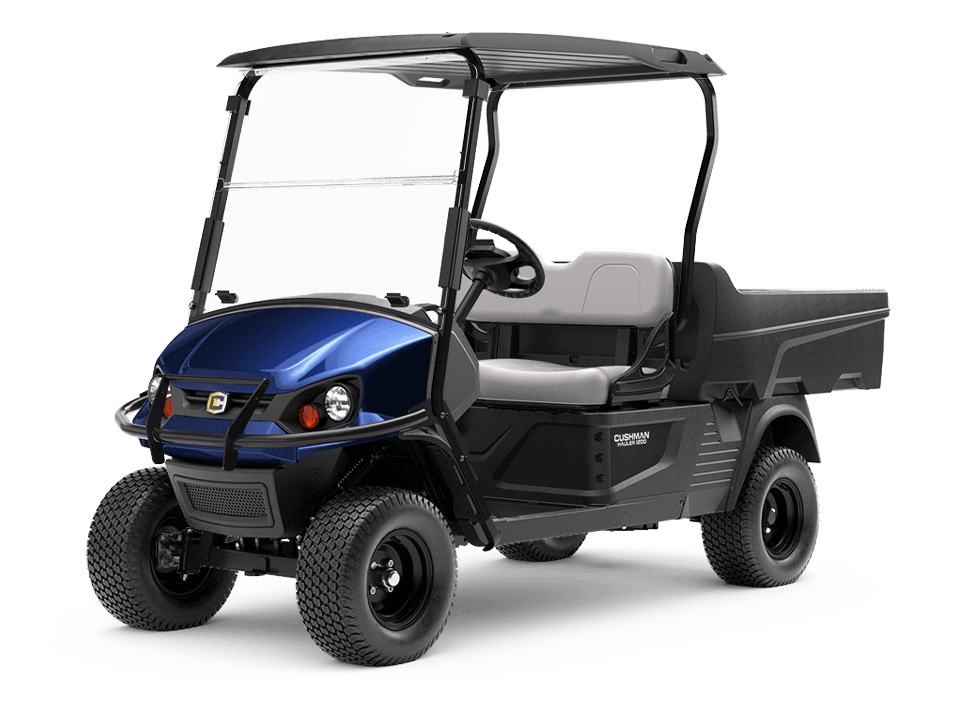

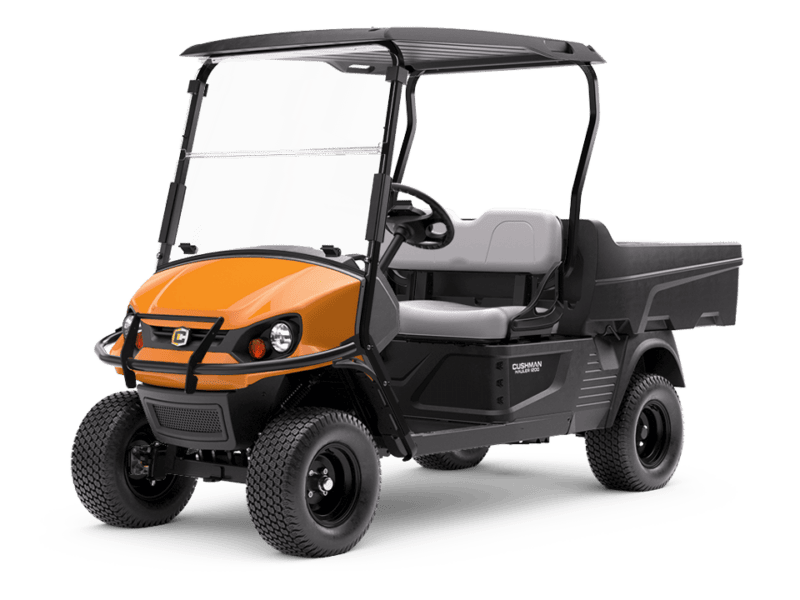

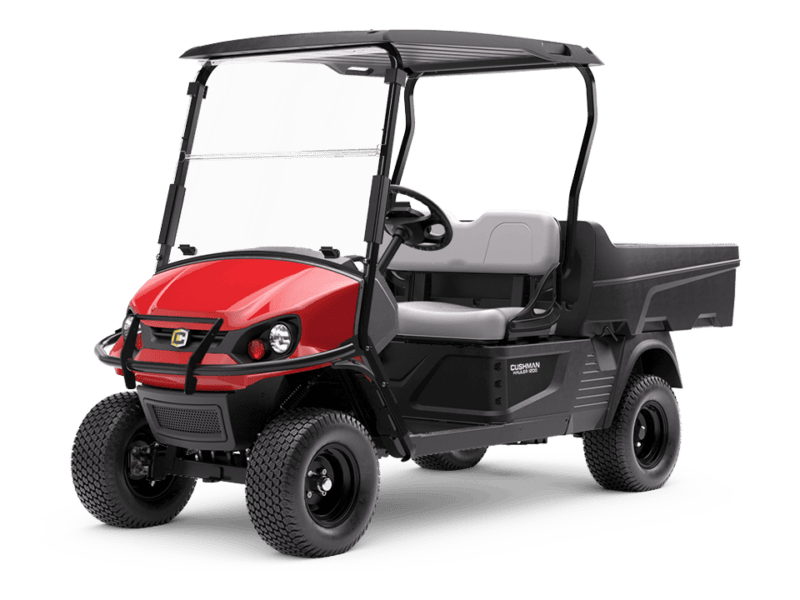

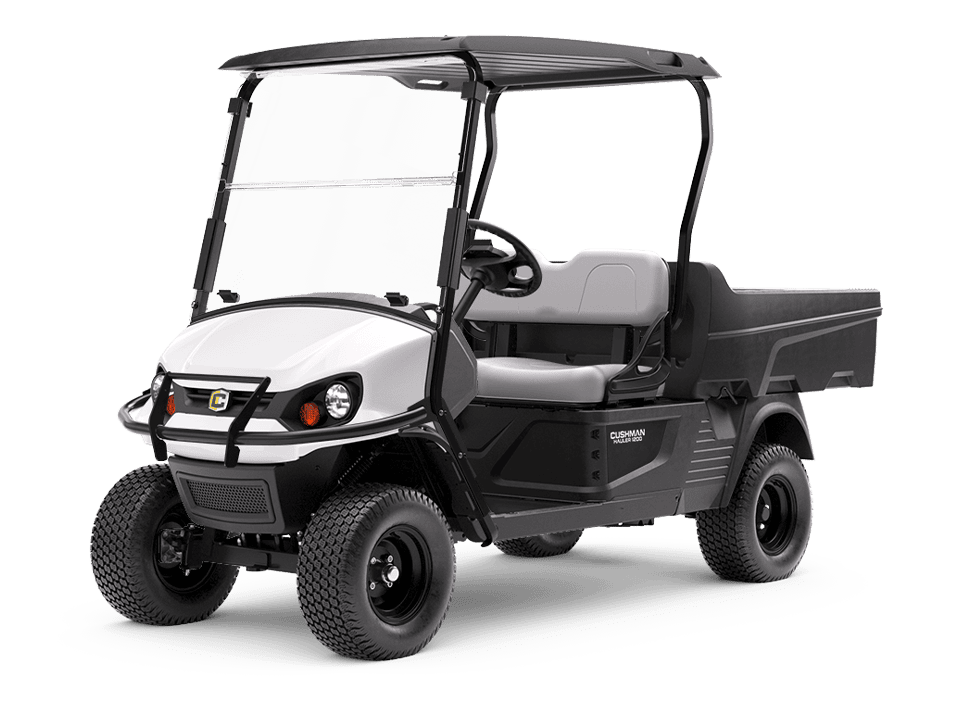

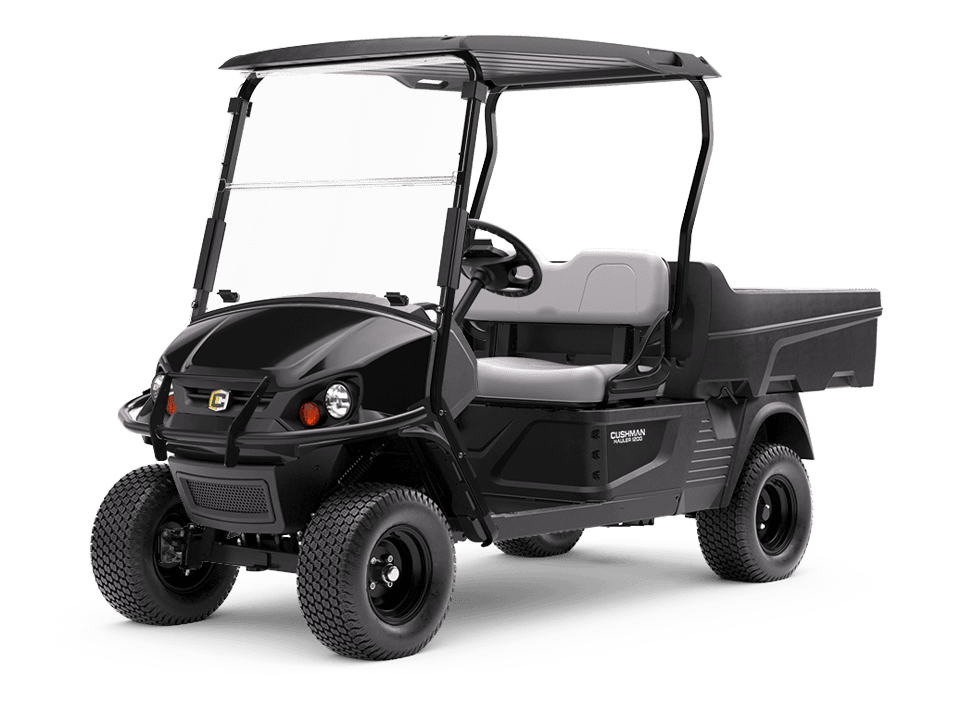

July 24, 2023Cushman Hauler 1200X
The Hauler 1200X is built to face the toughest challenges head-on. The fuel-efficient 13.5 hp electronic fuel injection gas engine, customizable bed, and added ground clearance for rough terrain make the hardest task easy. From transporting equipment around your facility to watering down greens – redefine the possibilities of your workday with the Hauler 1200X.
- 13.5 – hp gas engine with closed-loop electronic fuel injection
- 1200 lb Towing Capacity
- 900 lb Vehicle Load Capacity
Frame | Welded Steel with DuraShield™ Powder Coat |
---|---|
Body & Finish | Injection-molded TPO |
Available Colors | Black, Bright White, Flame Red, Forest Green, Metallic Charcoal, Orange, Patriot Blue, Safety Yellow |
Overall Length | 119 in (302.3 cm) |
Overall Width | 49.4 in (125.5 cm) |
Overall Height | No Canopy: 53 in (134.6 cm), With Canopy: 77.0 in (195.6 cm) |
Wheel Base | 77.5 in (196.9 cm) |
Wheel Track | Front: 38 in (96.5 cm), Rear: 38.5 in (97.8 cm) |
Ground Clearance | 7 in (17.8 cm) |
Cargo Deck Capacity | 12-cu-ft (0.34 m3) |
Cargo Deck Material | Roto-Molded Polyethylene |
Power Source | 4-Cycle, 24.5 cu in (401cc) |
Valve Train | Single Cylinder OHV |
Horsepower (KW) | 13.5 hp (10.1 kW) |
Electrical System | Starter/Generator – Solid State Regulator |
Battery (Qty/Type) | One, 12-volt Maintenance Free |
Key or Pedal Start | Pedal |
Air Cleaner | Replaceable Dry Cartridge |
Lubrication | Pressurized Oil System |
Oil Filter | Spin-on |
Cooling System | Air Cooled |
Fuel Capacity | 6.65 Gallon (25 L) Tank |
Drive Train | Continuously Variable Transmission (CVT) |
Transaxle | Differential w/ Helical Gears |
Gear Selection | Forward – Reverse |
Rear Axle Ratio | 11.42:1 (Forward), 14.35:1 (Reverse) |
Seating Capacity | 2 Person |
Curb Weight | 1003 lb (455 kg) |
Vehicle Load Capacity | 900 lb (408.2 kg) |
Towing Capacity | 1200 lb (544.3 kg) Max Load |
Bed Load Capacity | 500 lb (226.8 kg) |
Outside Clearance Circle | 23.5 ft (7.2 m) |
Speed | 16.5 mph ± 0.5 mph (26.6 kph ± 0.8 kph) |
Steering | Self-Compensating Rack & Pinion |
Suspension | Leaf Springs w/ Hydraulic Shock Absorbers |
Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
Parking Brake | Self-Compensating, Single-Point Engagement |
Tires | 20 x 8 – 10 (6 Ply-Rated) |
