September 7, 2023E-Z-GO Liberty LSV ELiTE Lithium
Chase new avenues and journeys in the all-new street-legal E‑Z‑GO Liberty LSV. With four spacious forward-facing seats, backup camera, stereo system and optional infotainment system with Apple CarPlay and Android Auto capabilities, the Liberty LSV is the perfect vehicle for going everywhere the road takes you.
- Infotainment System
- Industry-Leading Saftey Features
- Speeds up to 25 MPH
Frame | Welded Steel with DuraShield Powder Coat |
---|---|
Body & Finish | Front: Injection Molded TPO, Back: Thermoform ABS |

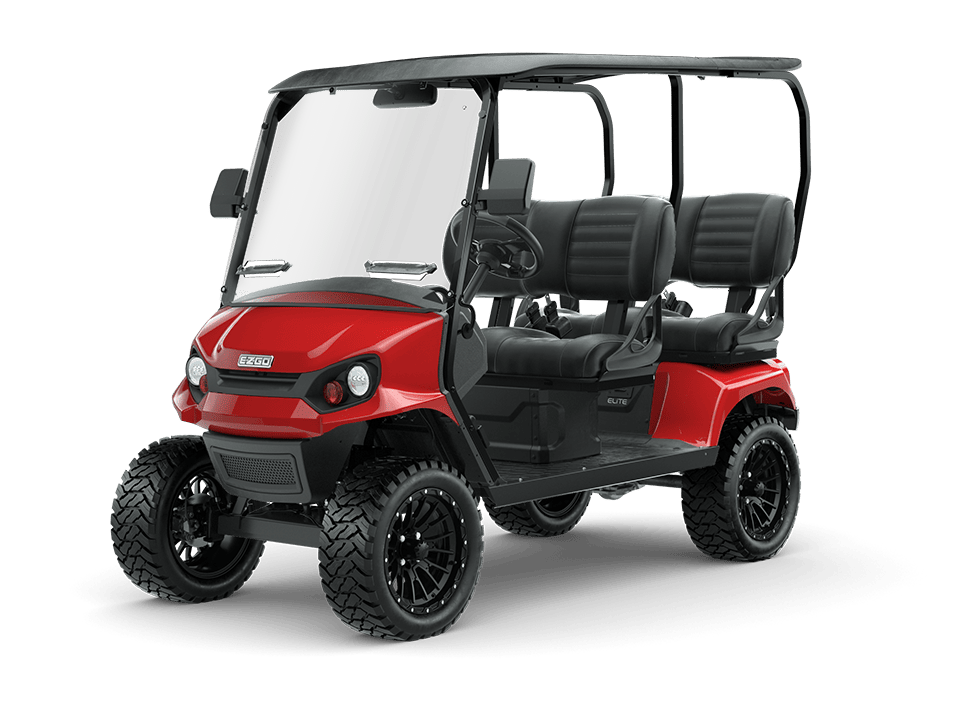

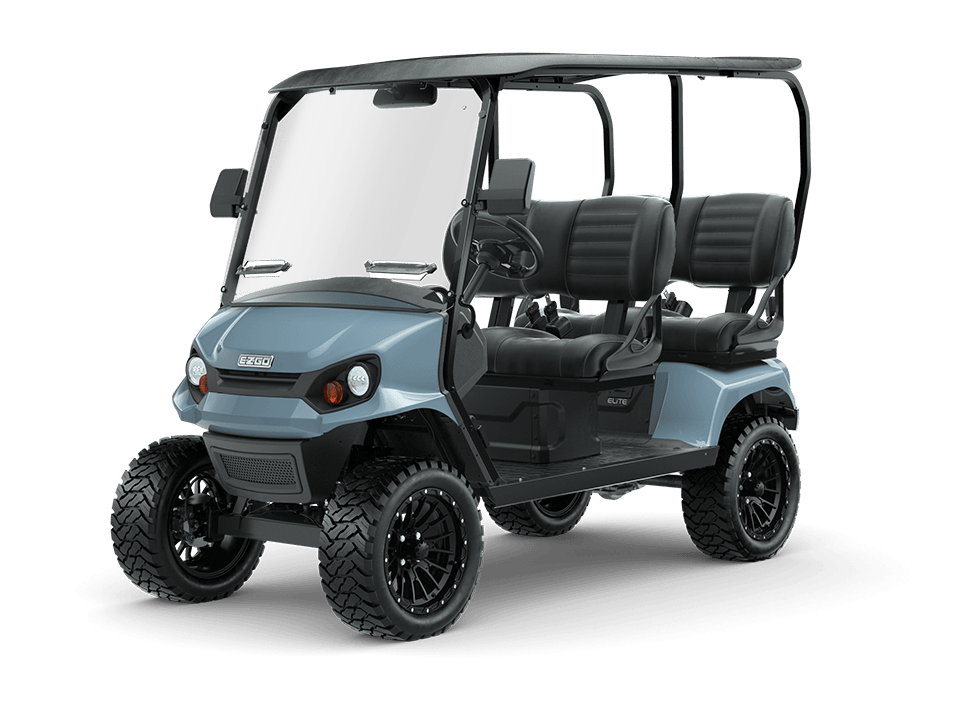

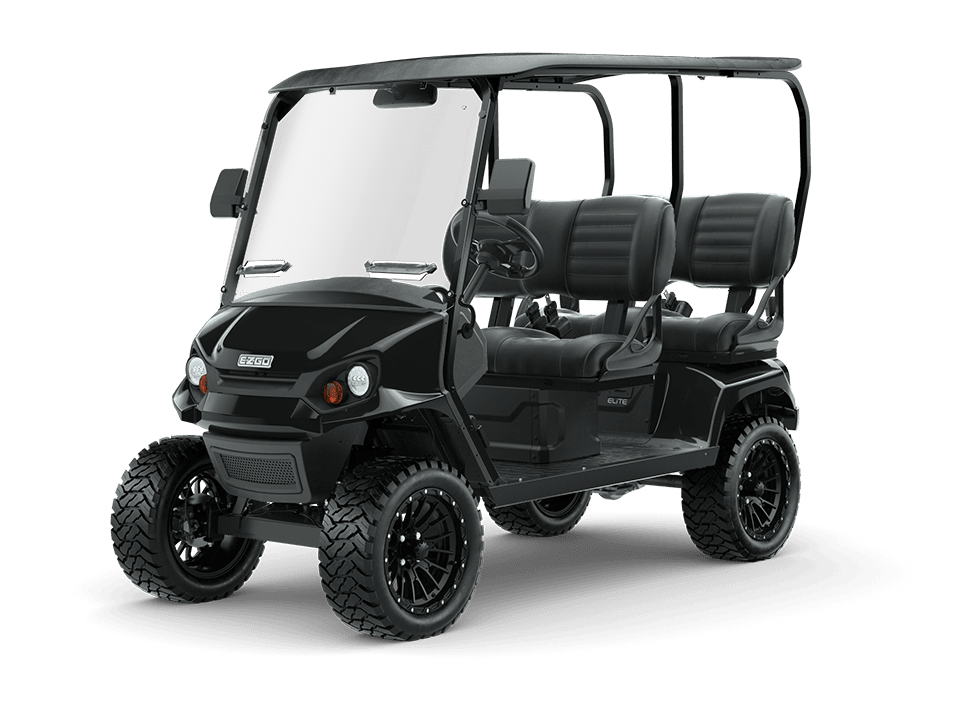

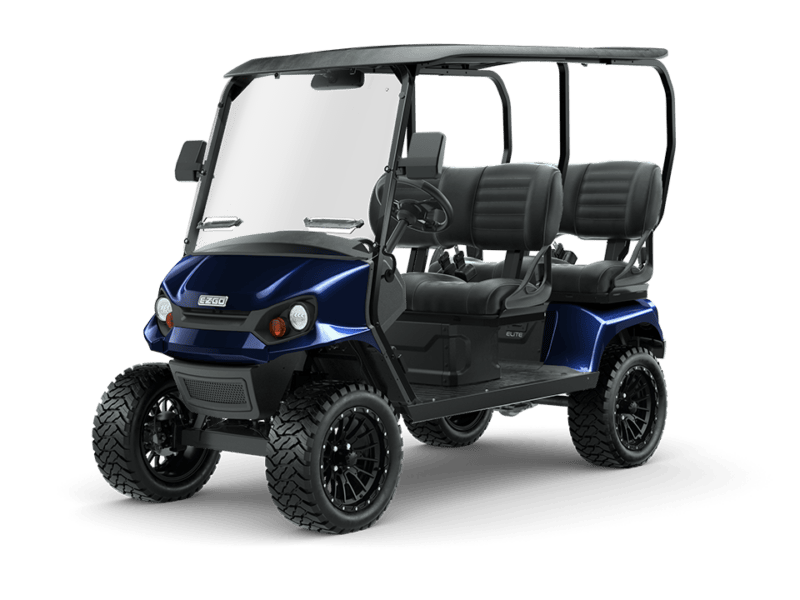

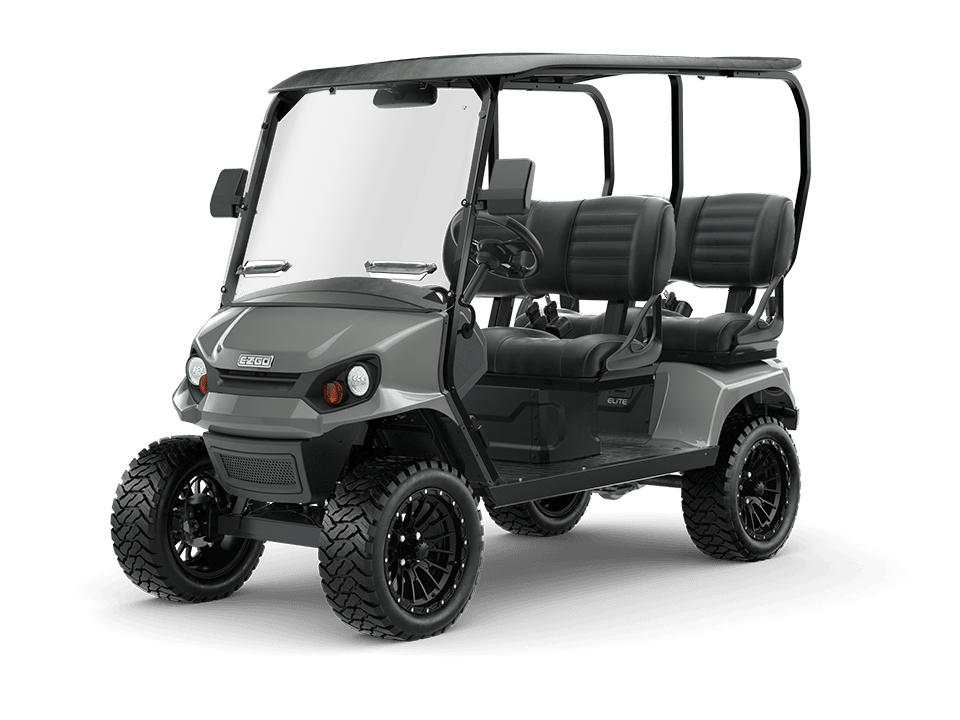

Available Colors | Black, Bright White, Flame Red, Ocean Grey, Slate, Metallic Charcoal, Patriot Blue |
Overall Length | 106.5 in (271 cm) |
Overall Width | 46 in (117 cm) |
Overall Height | 52.5 in (113 cm) |
Wheel Base | 77.5 in (197 cm) |
Wheel Track | 38 in (97 cm) |
Ground Clearance | 7 in (18 cm) |
Power Source | 56.7V DC |
Horsepower (KW) | 11.7 hp (8.7 kW) |
Electrical System | 56.7V |
Battery (Qty/Type) | 2 Li-Ion 56 Volt Modules ELiTE 4.2 Twin (Standard Configuration) |
Battery Charger | 56.7 V 900 W World Charger, 3 m Charging Cord |
Key or Pedal Start | Pedal |
Speed Controller | 235 amp AC controller |
Drive Train | Motor Shaft Direct Drive |
Transaxle | Limited Slip Differential with Helical Gears |
Gear Selection | Dash-Mounted Forward-Neutral-Reverse |
Seating Capacity | 4-person |
Curb Weight | 1040 lb (471 kg) |
Vehicle Load Capacity | 800 lb (364 kg) |
Speed | 25 mph (40.2 kph) |
Steering | Self-compensating rack and pinion |
Suspension | Leaf springs with hydraulic shock absorbers |
Service Brake | Four-wheel Hydraulic, Front Disk; Rear Self-adjusting Drum |
Parking Brake | Automatic Electromagnetic |
Tires | Paramount M/T 23×10-14 |
